TOPMAX®
The TOPMAX floor table is the quick formwork solution for large slab surfaces with regular ground plans and repetitive geometries.
User-friendly, efficient and very safe: TOPMAX slab formwork. Use these floor tables to form large surfaces up to 50 cm thick without additional structural calculations; up to 150 cm thickness with structural calculation.
Videos & photos
TOPMAX, ideal for large slab areas and less expensive: Up to 25 % lower labour costs - over 50 % lower crane costs - up to 70 % lower transport costs – form sheet does not need to be changed during construction.
With TOPMAX, you save time and money while achieving maximum safety and the best forming results. The logical system, the sophisticated range of accessories as well as the efficient potential implementations make it possible.
Low transport volume and storage costs due to the low table height of only 12 cm.
The TOPMAX GASS Multi Adapter allows TOPMAX panels to be attached to the GASS prop (single prop or towers) in combination with the TOPMAX Folding Head. The adapter is attached to the prop with four ring bolts from GASS prop to prop.
High level of safety thanks to compatibility with the PROTECTO side protection system.
Large table areas of up to 26 m² can be moved with just one crane lift.
Easy forming of fitting surfaces and infills with Timber Holders or RASTO standard panels.
Product advantages
Work safely
- Tables with pre-assembled
- PROTECTO edge protection are easy to move
- Very safe fall protection around the slab edge; edge protection using system components
- Ergonomic movement of panels with TOPMAX Mover or hand-operated trolley
- Hot-dip galvanised steel frame ensures long serviceable life
Work safely
- Tables with pre-assembled
- PROTECTO edge protection are easy to move
- Very safe fall protection around the slab edge; edge protection using system components
- Ergonomic movement of panels with TOPMAX Mover or hand-operated trolley
- Hot-dip galvanised steel frame ensures long serviceable life

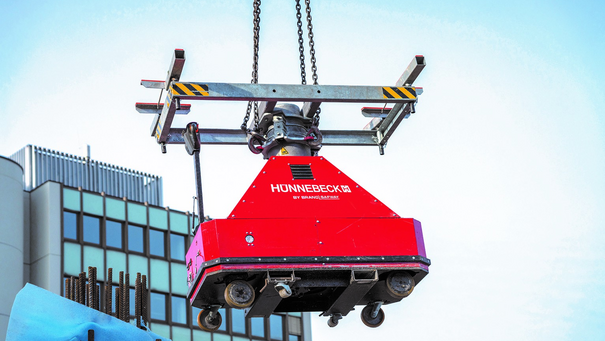

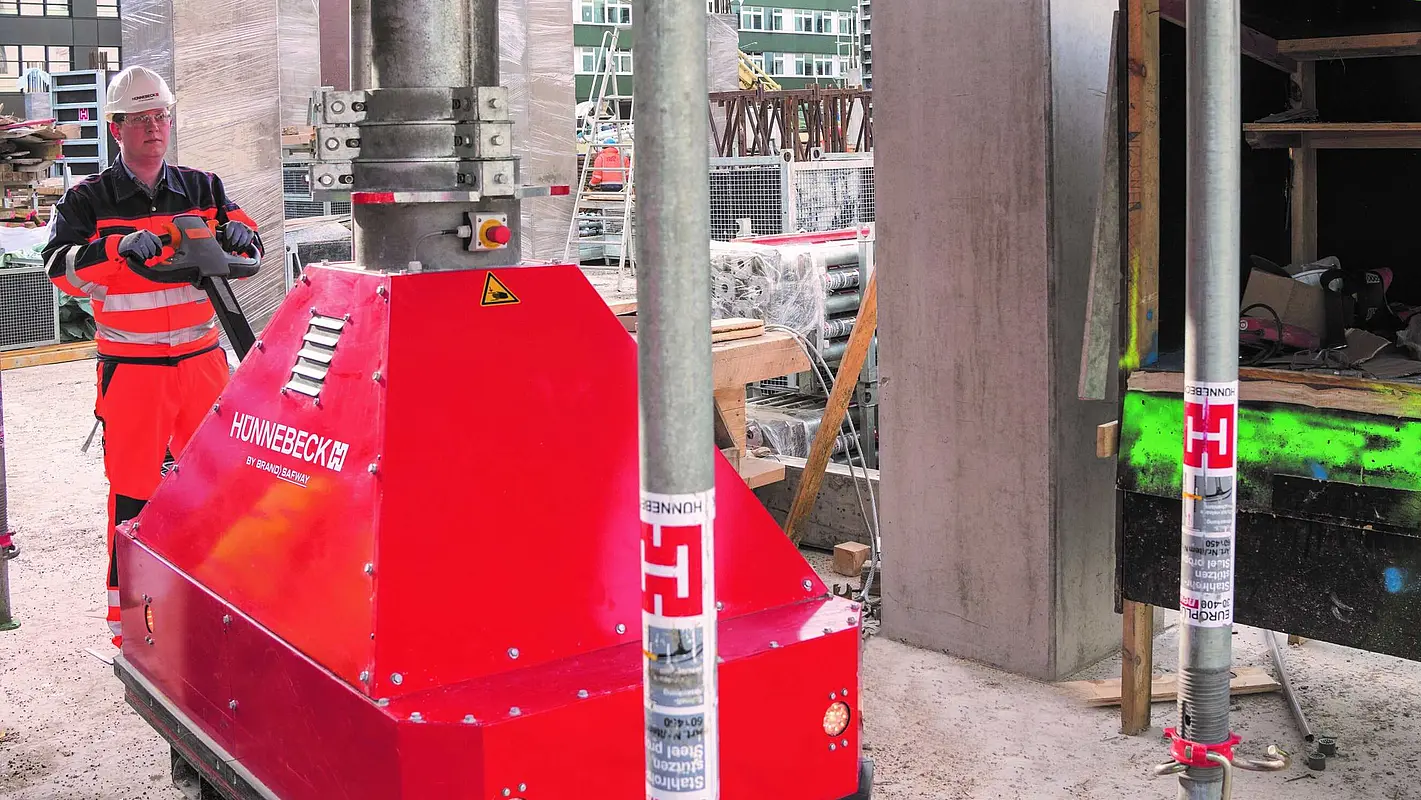

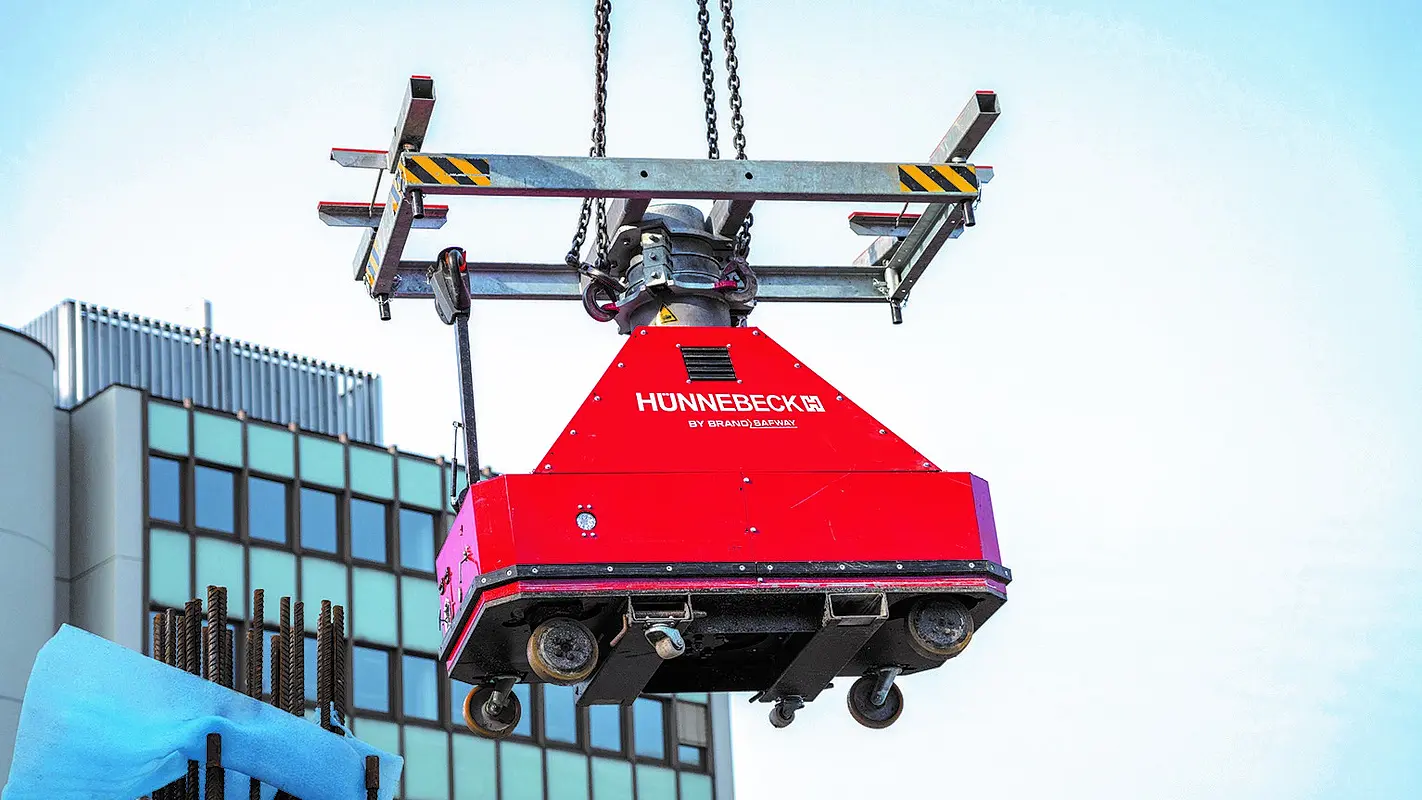

Easy transport with
TOPMAX Mover
With the TOPMAX Mover, you can move slab tables flexibly and safely:
- Lifting, aligning, lowering and transporting individual TOPMAX ceiling tables
- Can be used up to a height of 7.50 m
- Compatible with TOPMAX extension frames and TOPMAX Mover extension frames
- Working load up to 1,000 kg
Application & use
Download the user guide here. Click on the name of a chapter to access it directly.
Overview of user guide
Technical data
Element widths | 180 | 240 cm |
Element lengths | 540 cm |
Forming areas | 9.72 m² (180 x 540 cm) | 12.96 m² (240 x 540 cm) |
Table height | 12 cm steel frame profile |
Form sheet | 15 mm ECOPLY® plastic form sheet |
Table weight | 422 kg (180 x 540 cm) | 495 kg (240 x 540 cm) |
Corrosion protection | Hot-dip galvanisation and powder-coating |
Standard shoring | EUROPLUSnew® props 20 kN | 30 kN | GASS® |
Special shoring | MODEX® shoring | GASS® |
Supports | TOPMAX® Folding Head | Connection Bearing |
Adjustments | Support Girder with RASTO® panel | Timber Holder & square timbers |
Forming/stripping times | t = 0.15 – 0.30 hours/m² |
Special features |
|
