Variable-use tunnel carriers for the efficient production of cut and cover or mining tunnels

INFRA-KIT Tunnel Applications

Our Infrastructure Competence Centre provides comprehensive solutions for any type of tunnel construction. With our experienced engineers, working together globally to find the best solution for you, we have completed numerous tunnel construction projects with various structures and shapes and in different countries all around the world.

Videos & photos

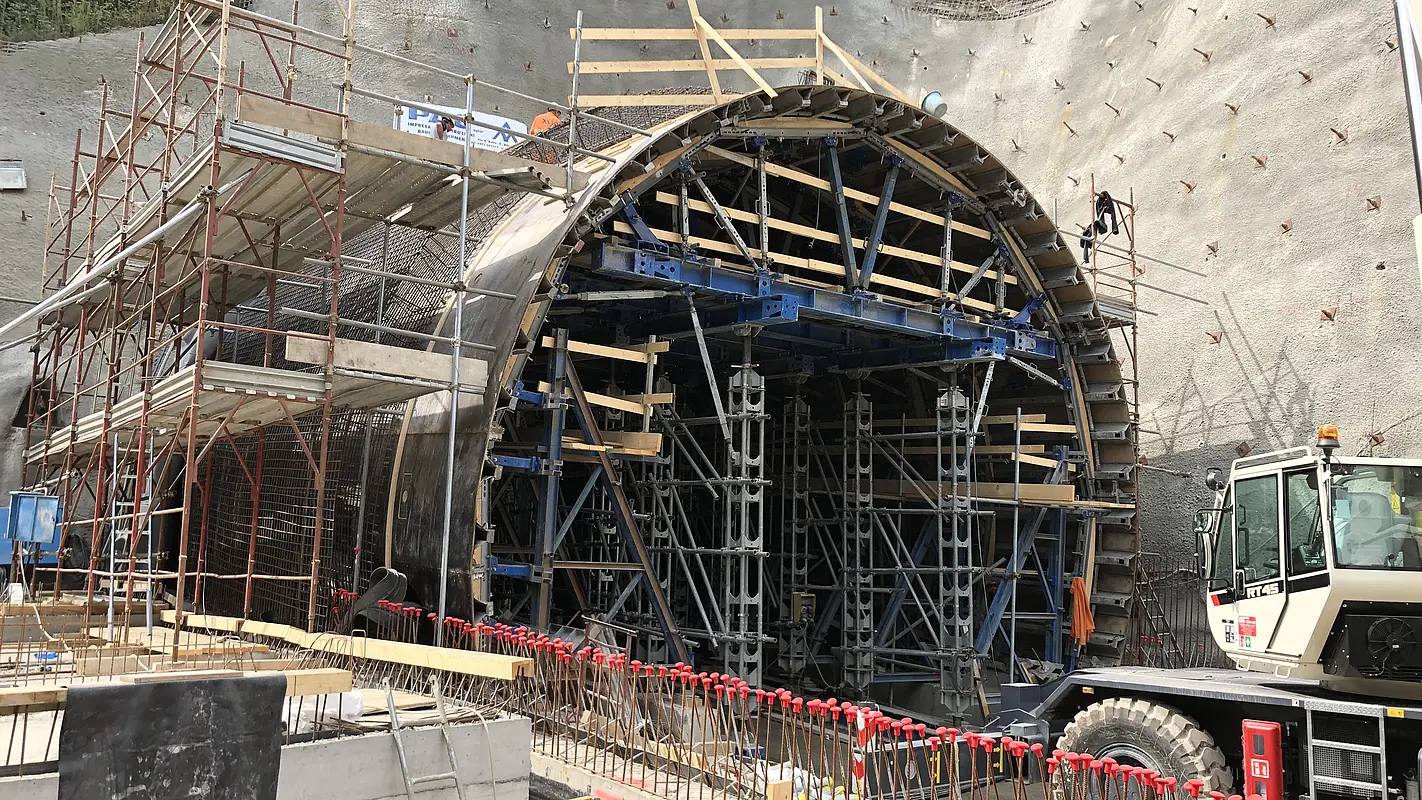

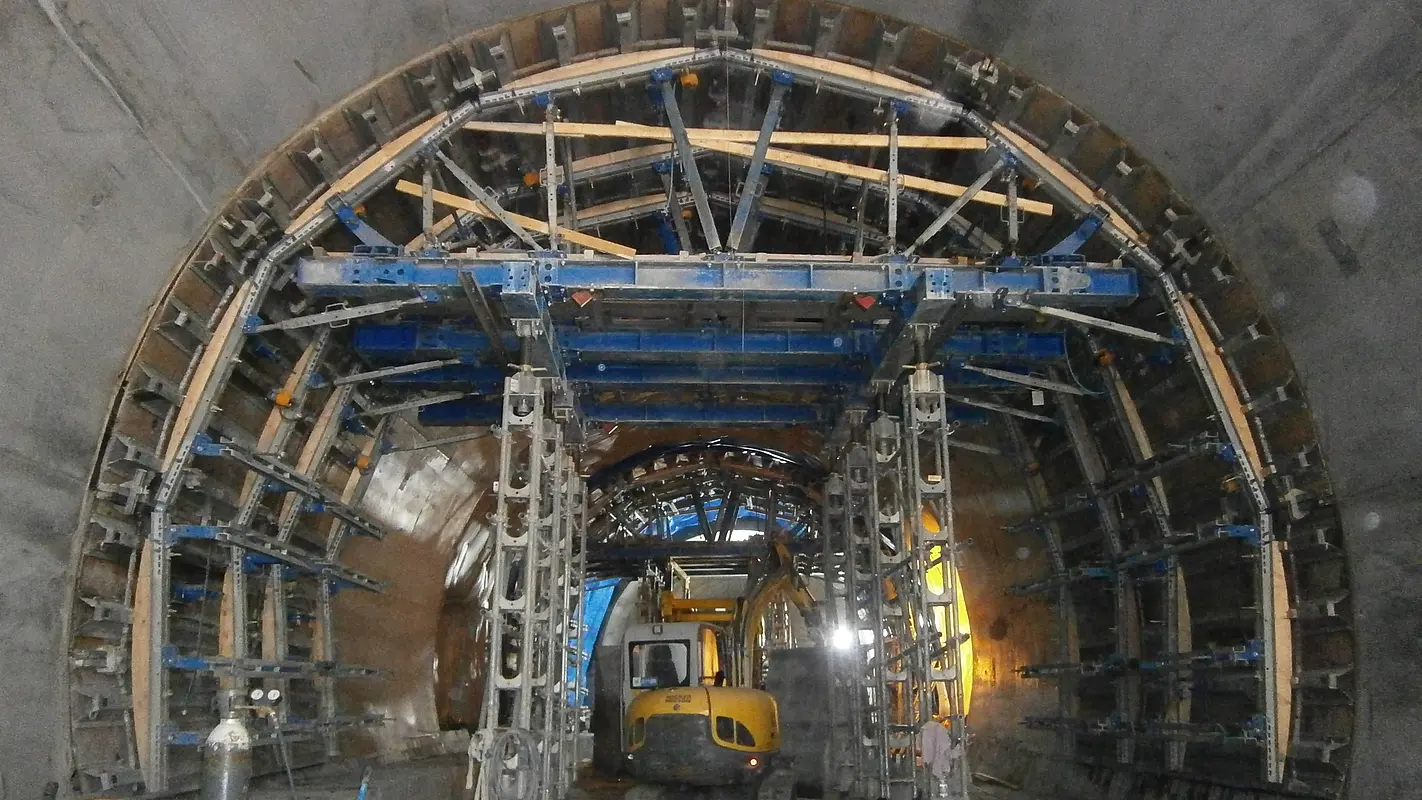

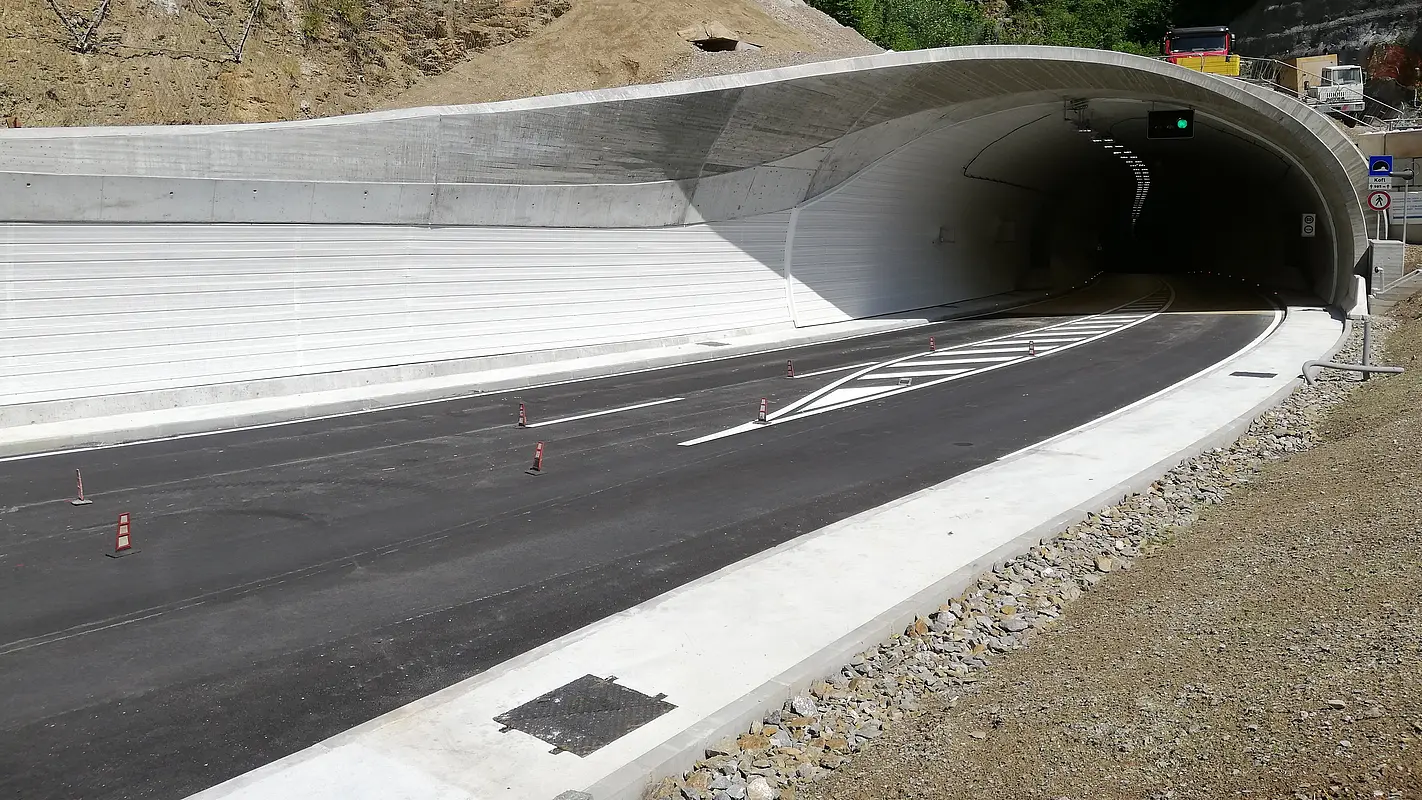

Bolzano tunnel construction


Bolzano tunnel construction

Bolzano tunnel construction

Bolzano tunnel construction

Bolzano tunnel construction

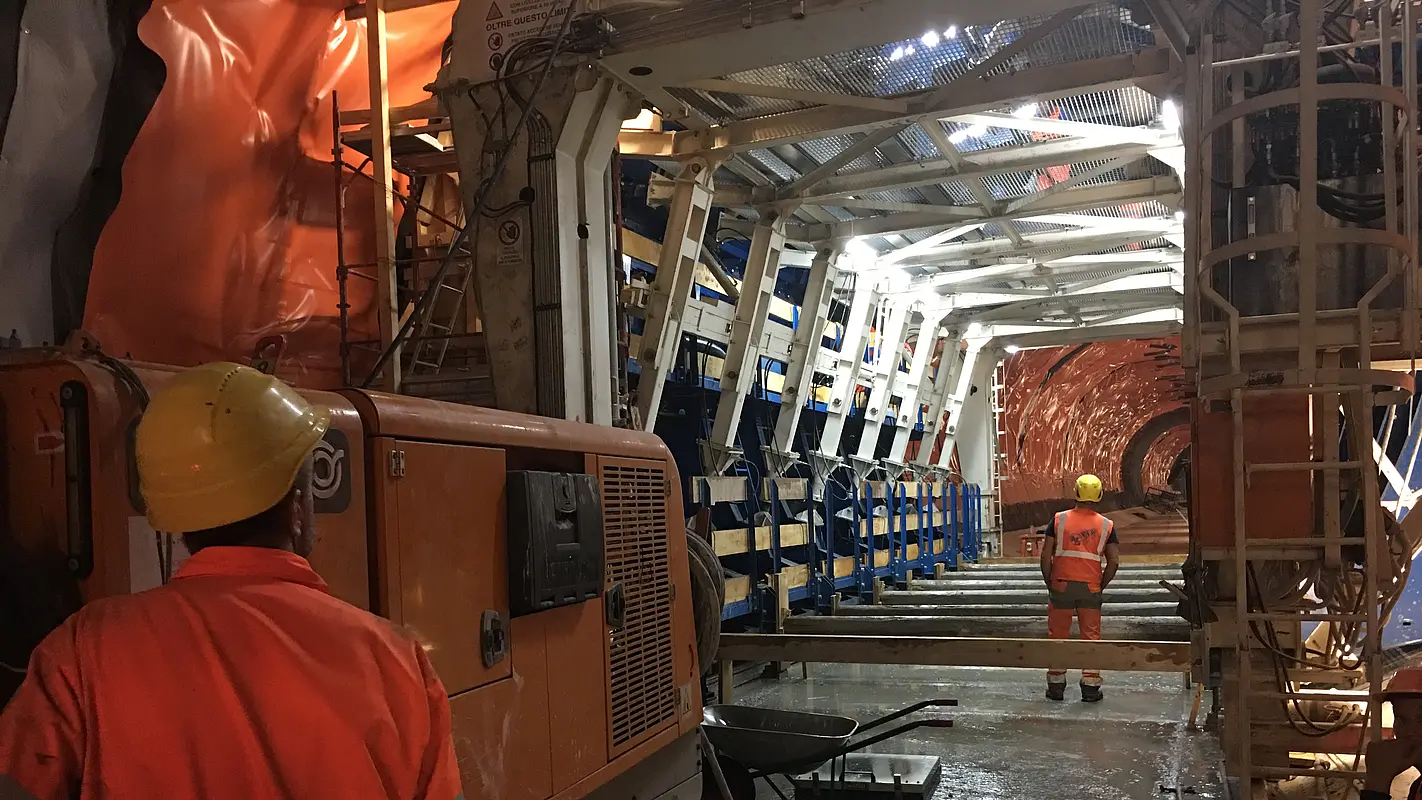

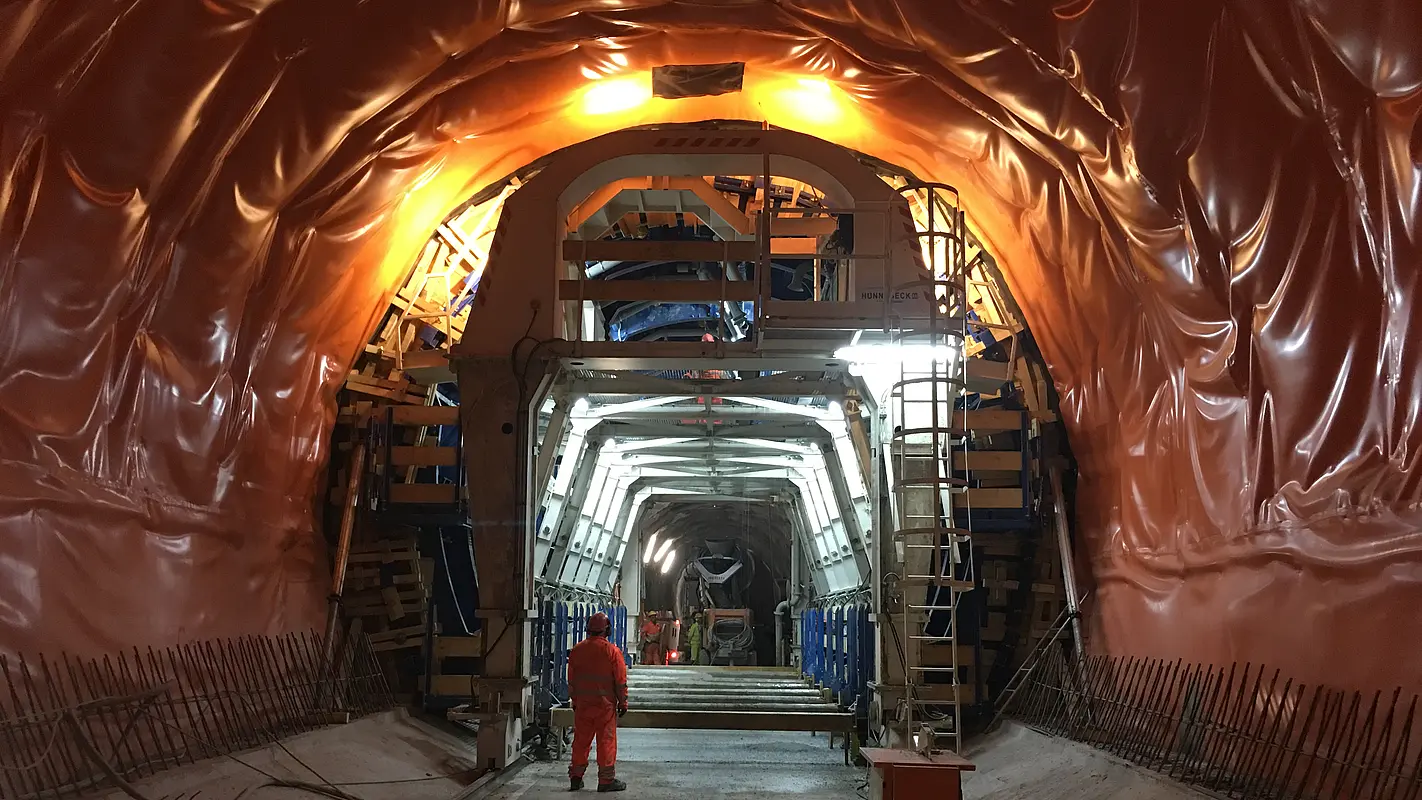

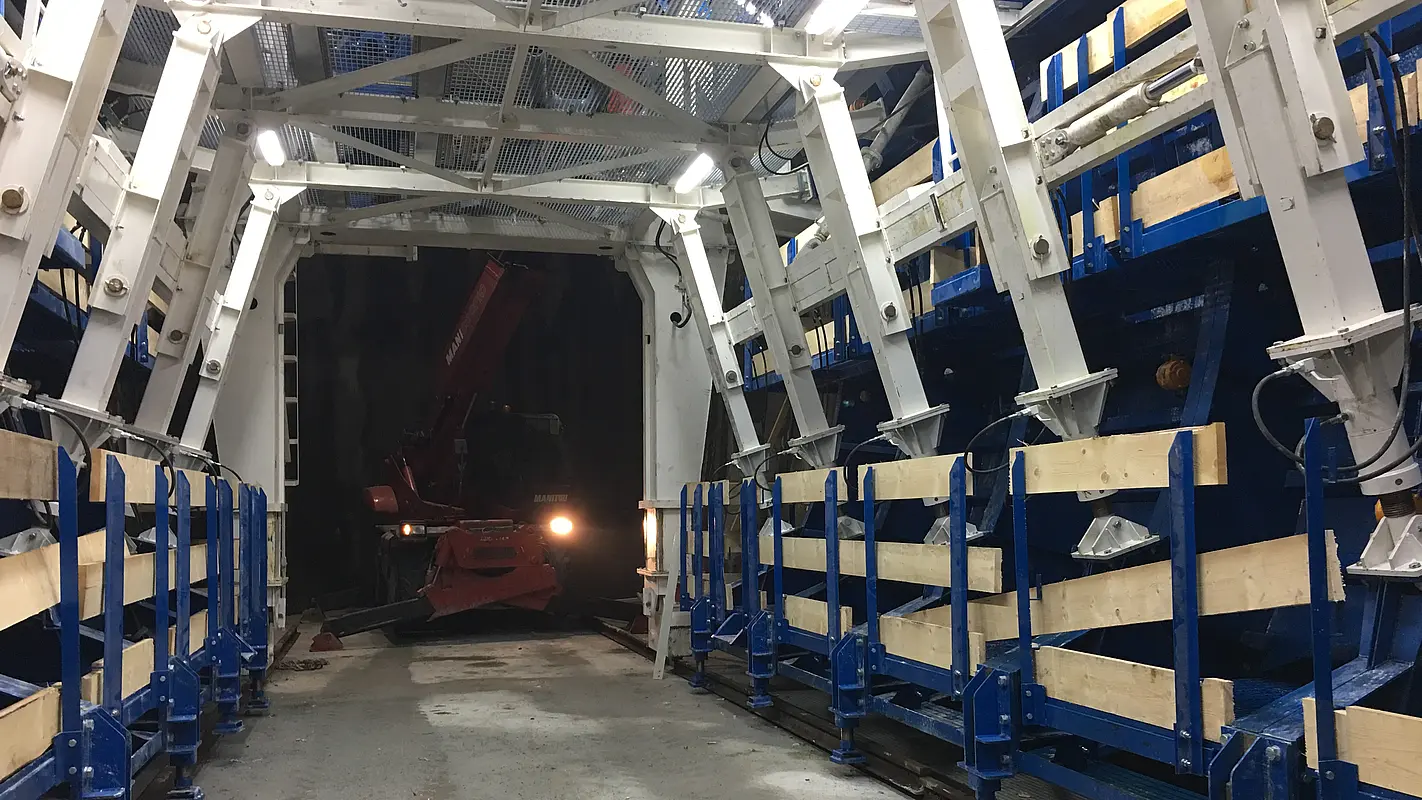

Brennero tunnel construction

Brennero tunnel construction

Brennero tunnel construction

Brennero tunnel construction

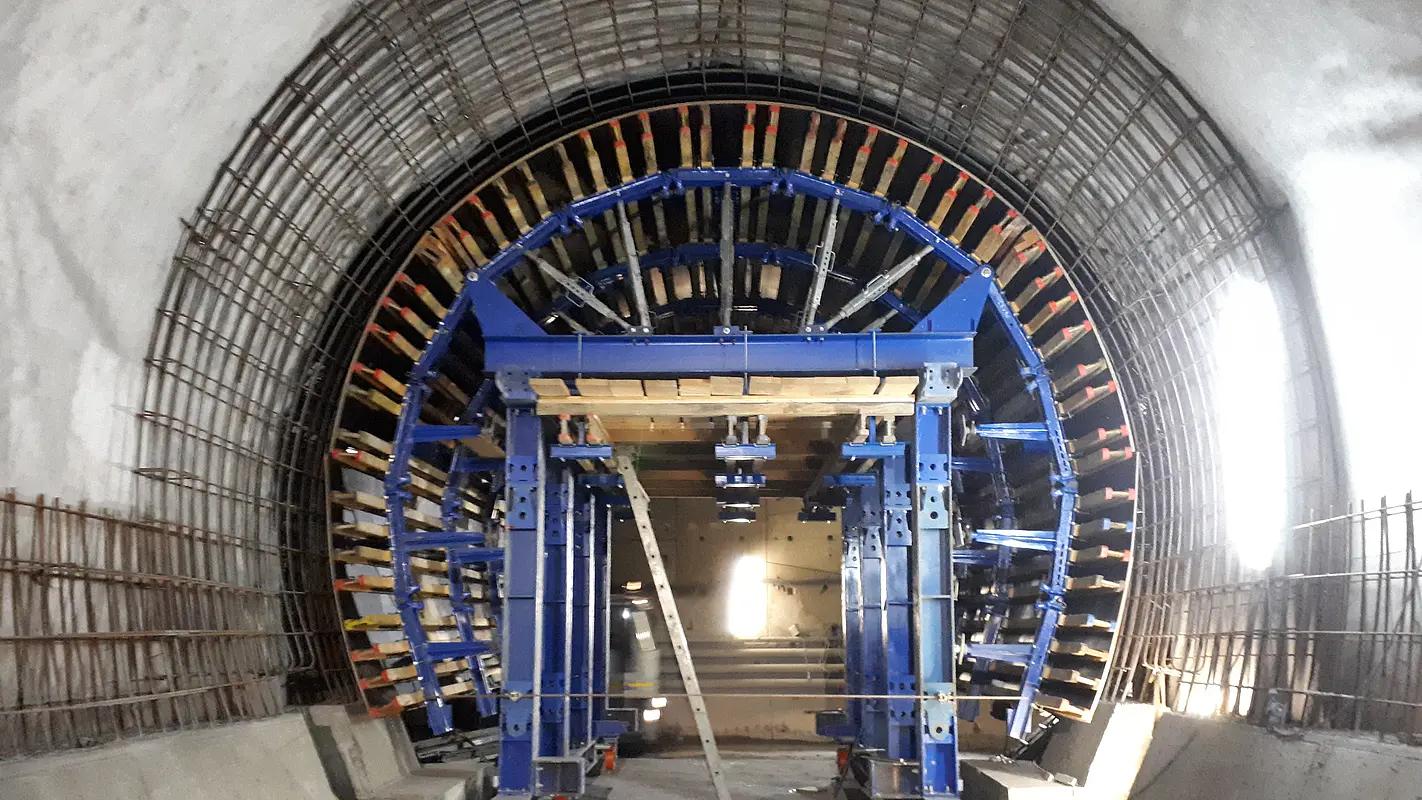

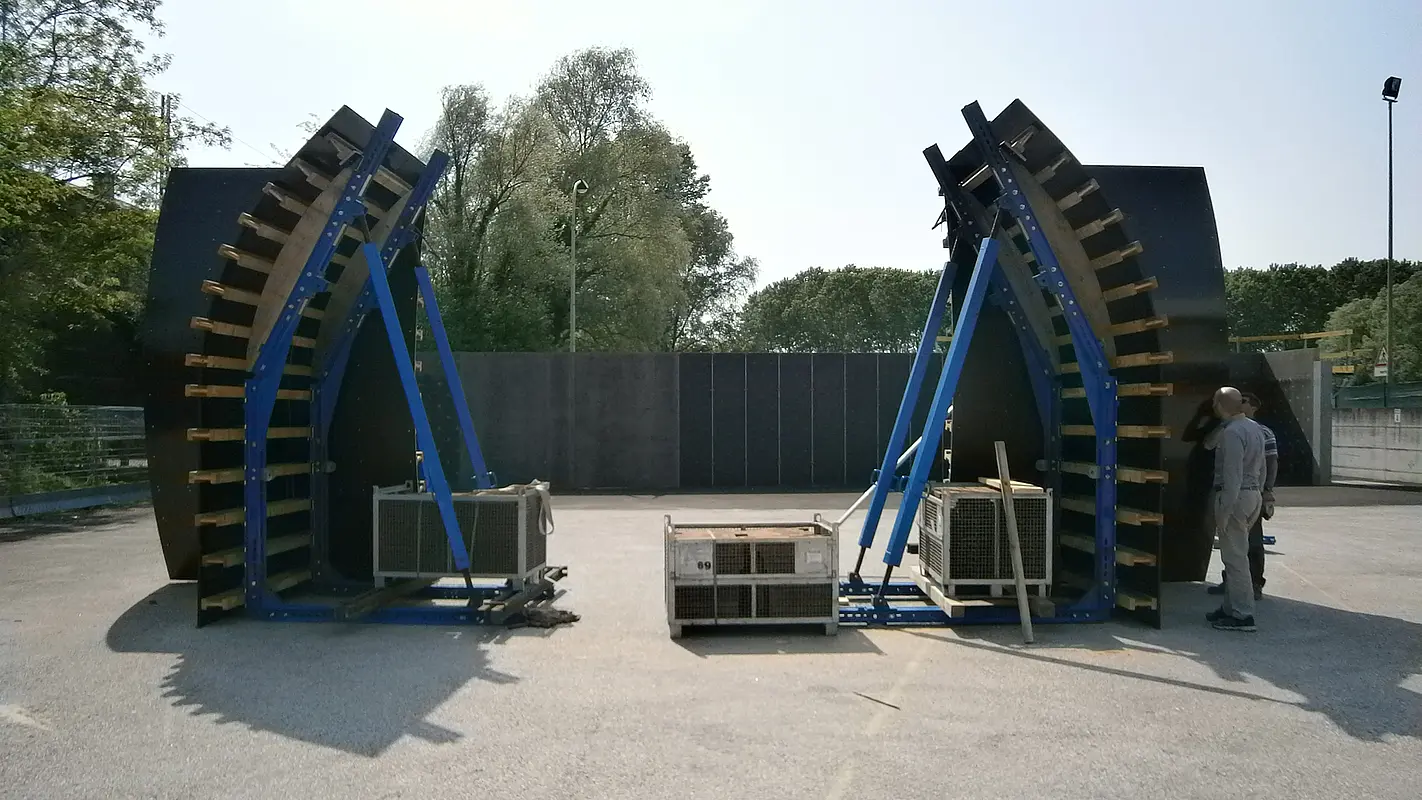

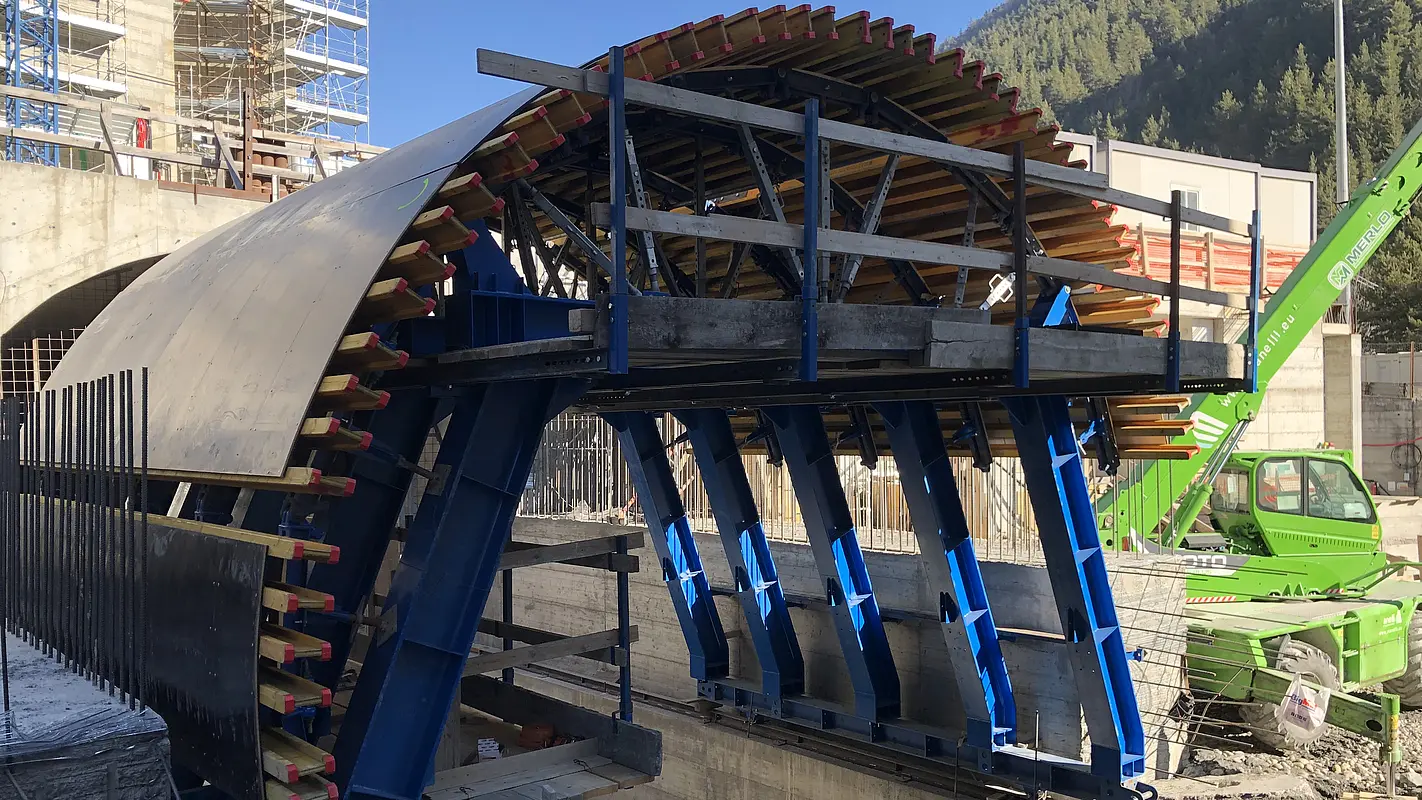

Frejus tunnel construction

Frejus tunnel construction

Frejus tunnel construction

Frejus tunnel construction

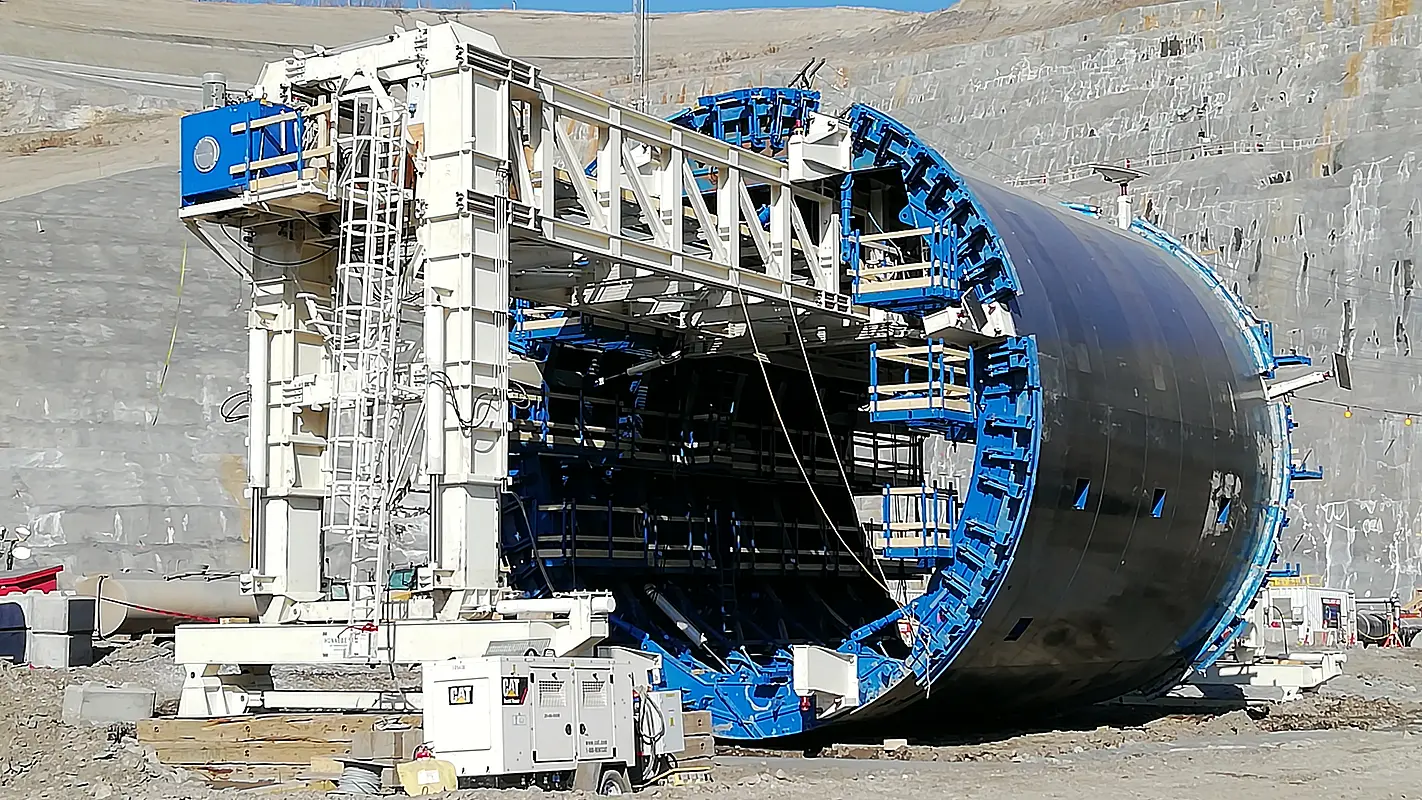

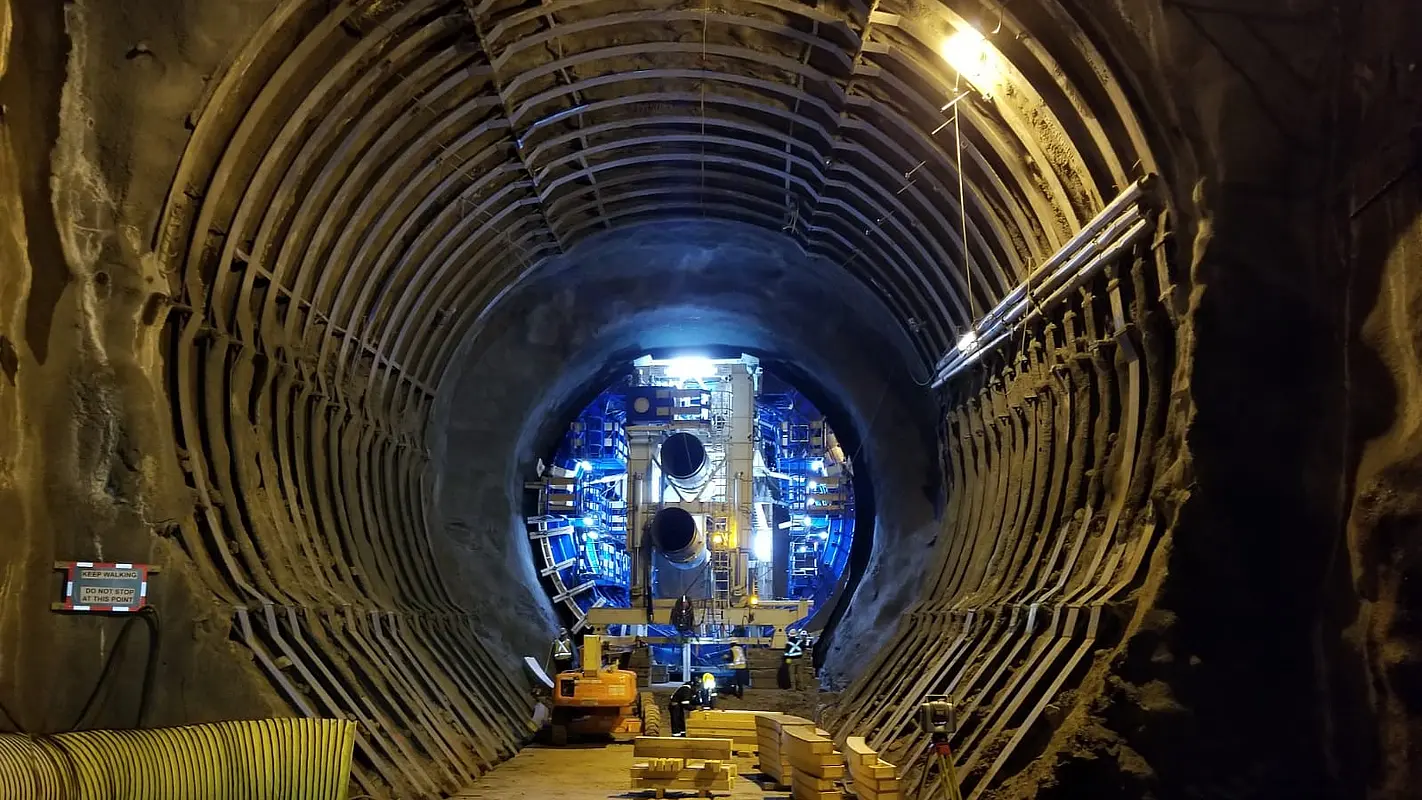

Milan (Canada) tunnel construction

Milan (Canada) tunnel construction

Milan (Canada) tunnel construction

Milan (Canada) tunnel construction

2

Application examples

Many of the applications can be achieved with standard materials, which keeps costs low. Hünnebeck also has vast experience with customised tunnel solutions; moreover, we can provide prototype machines adapted to the project’s needs. Customised equipment is usually equipped with hydraulic jacks and spindles with external vibrators, a concrete distributor and an electrical or hydraulic repositioning system. A single remote control can be designed to move and operate the formwork as requested.





Motorway tunnels



Railway tunnels



Water tunnels

With our systems, we support all kinds of tunnel construction methods:

  • Open cut, monolithic and partly monolithic
  • Mine
  • Cut and cover construction method
  • Special construction methods

Main tunnel projects



Types of tunnel

Radius

Types of formwork

Motorway

Types of tunnel

Normal section

Radius

5.0 m - 6.0 m

Types of formwork

Self Supp. - Self React.



Types of tunnel

Large section

Radius

7.0 m - 8.5 m

Types of formwork

Self Supp. – Self React.



Types of tunnel

Enlarged section/ cavern

Radius



Types of formwork

Laterally extendable formwork; turning turret formwork

Wide section

Types of tunnel

Cavern

Radius

>12.0 m

Types of formwork

Light Formwork with integrated traveler

Railway

Types of tunnel

Single track

Radius

3.5 m - 5.0 m

Types of formwork

Self Supp. – Self React. – Needle Beam



Types of tunnel

Double track

Radius

6.0 m - 7.0 m

Types of formwork

Self Supp. – Self React. – Needle Beam

Subway

Types of tunnel

Tunnel

Radius

5.0 m - 6.0 m

Types of formwork

Self Supp. – Self React. – Needle Beam



Types of tunnel

Station

Radius



Types of formwork

Laterally extendable formwork; turning turret formwork; special equipment

Hydraulic

Types of tunnel

Small size

Radius

1.5 m - 3.0 m

Types of formwork

Telescopic Full-Round



Types of tunnel

Medium size

Radius

4.0 m - 5.0 m

Types of formwork

Telescopic Full-Round; Needle Beam – Full Round Split casting



Types of tunnel

Large size

Radius

6.0 m - 7.0 m

Types of formwork

Telescopic Full-Round; Needle Beam – Full Round Split casting



Types of tunnel

Cavern

Radius



Types of formwork

Special panel formwork (mainly wooden type)

Service

Types of tunnel

Vehicle cross-passage

Radius

2.5 m - 3.5 m

Types of formwork




Types of tunnel

Pedestrian cross passage

Radius

1.0 m - 2.5 m

Types of formwork

Self-supp. – Self-react. with horiz. strut



Types of tunnel

Niches

Radius



Types of formwork

Self-supp. – Self-react. with horiz. strut

Our global Infrastructure Competence Centre

The centre is focused on creating solutions for bridge and tunnel structures. It also incorporates the experience of Hünnebeck’s engineers and its development centre. It is a virtual centre - an engineering community - in which employees from different locations around the world are involved. When providing tunnel structures anywhere around the globe, these experts can, for example, estimate costs and support the planning of scaffolding and formwork. If necessary, they can also develop individual solutions or make suggestions for the optimal organisation of logistics.

Services offered:

  • Design and engineering
  • Redesign and engineering for old machines (retrofit to the new geometry)
  • Site supervision
  • Assembly service

Related products

All Hünnebeck tunnel solutions are based on just one system: The modular beam-kit system INFRA-KIT, which offers maximum flexibility with just a few components. INFRA-KIT is equipped with numerous intelligent and sophisticated features and can be rented for different tunnel applications. Pre-assembly is possible.
