INFRA-KIT Parapet Traveller

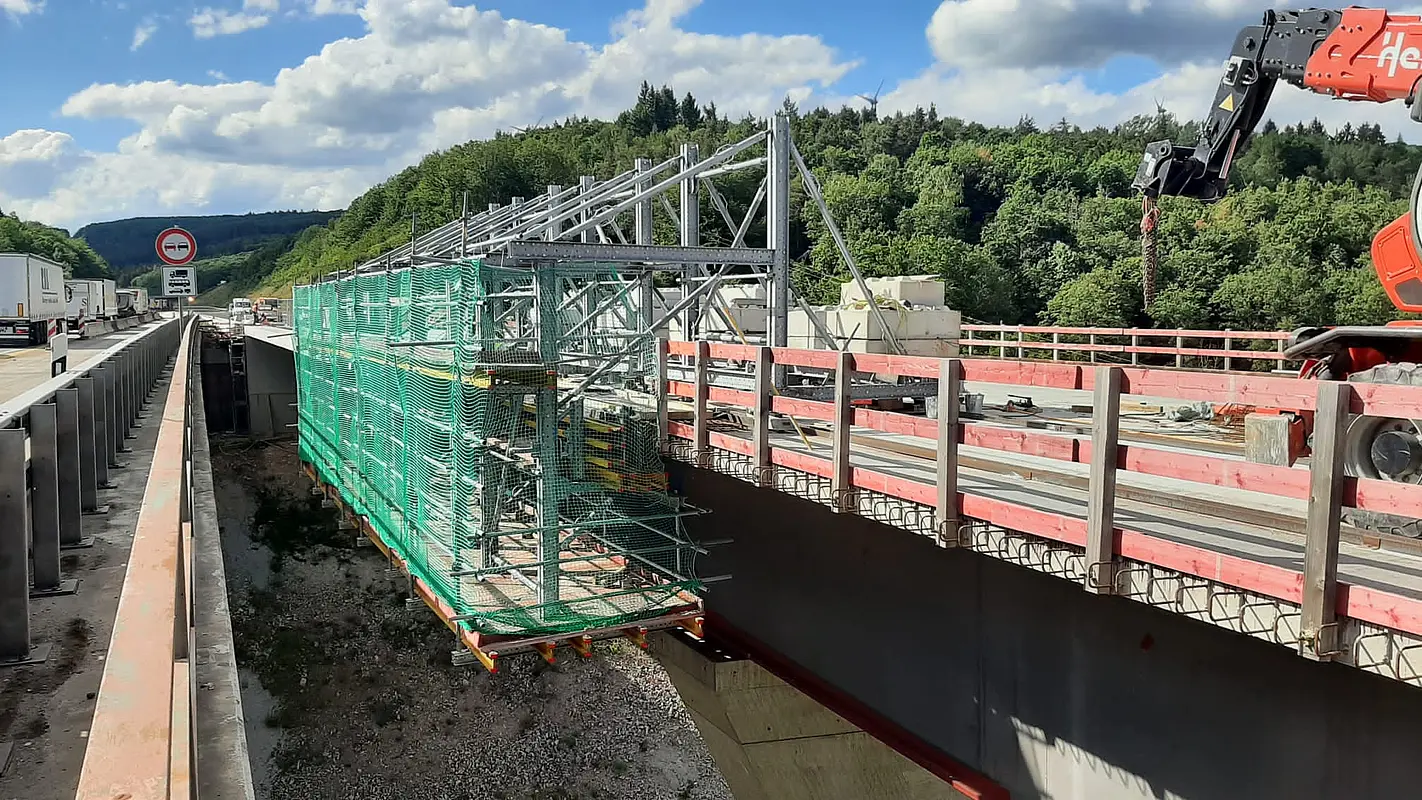

Variable-use parapet traveller for the efficient production or renovation of parapets. Can be used for any bridge length, any bridge radius and also for special geometries.
Standardised system components reduce the planning effort and enable quick assembly on site. Can also be used for bridges with
strong transverse and longitudinal inclinations. Allows for excellent concrete quality.
Videos & photos
Product advantages
Work productively
- Quick assembly and disassembly; Pre-assembly possible.
- Bolting of the adapters substantially reduces time-consuming screwing.
- Anchoring to the structure not required
- Operation in a few seconds allows rapid work progress
- High load capacity for optimum system utilisation

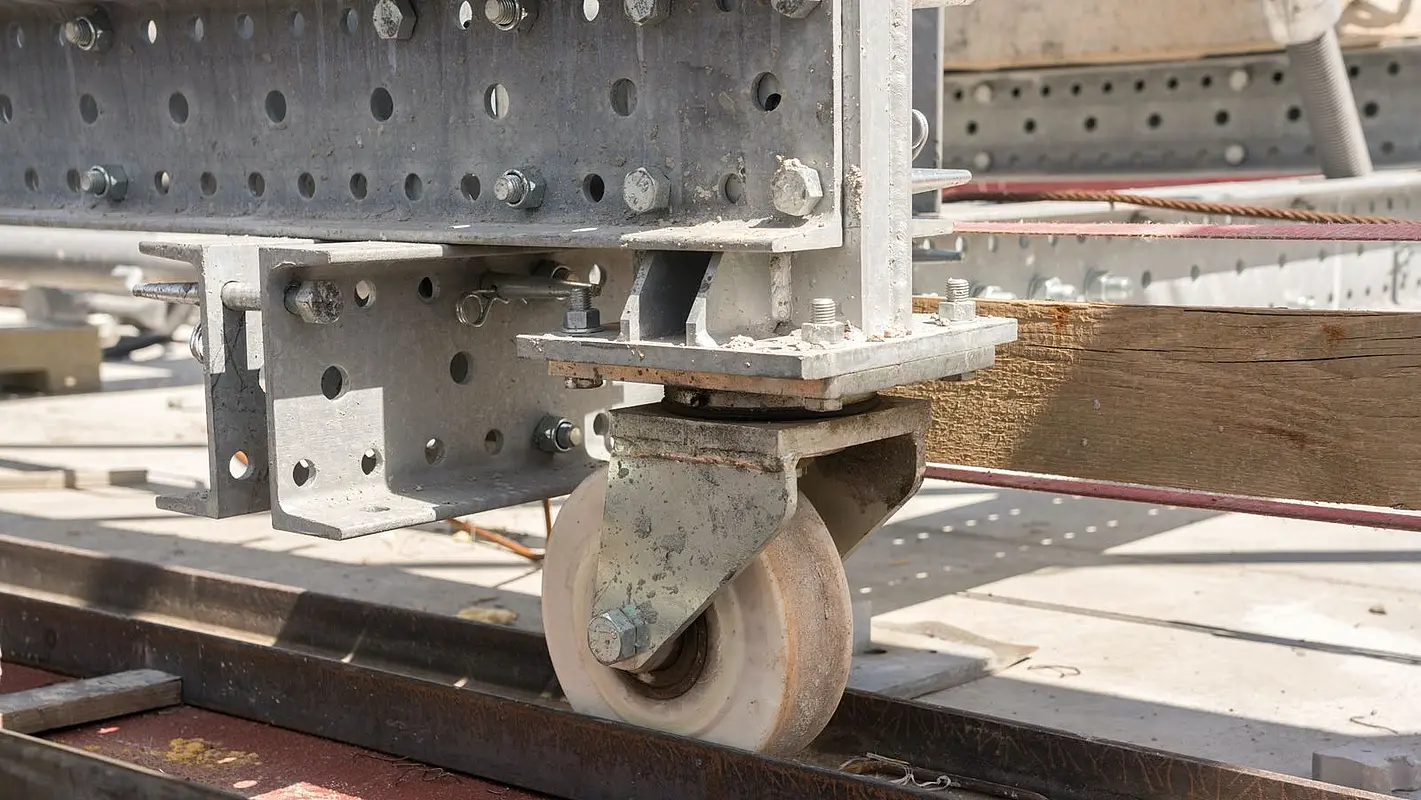

- The traveller is moved on stable fixed and swivel castors on U-steel profiles.
Work safely
- High level of occupational safety by using PROTECTO or MODEX side protection
- Robust and durable system components thanks to hot-dip galvanisation.
- Flexible arrangement of beams and spindles thanks to numerous adjustment options.
- Traveller can therefore be adapted to any parapet.

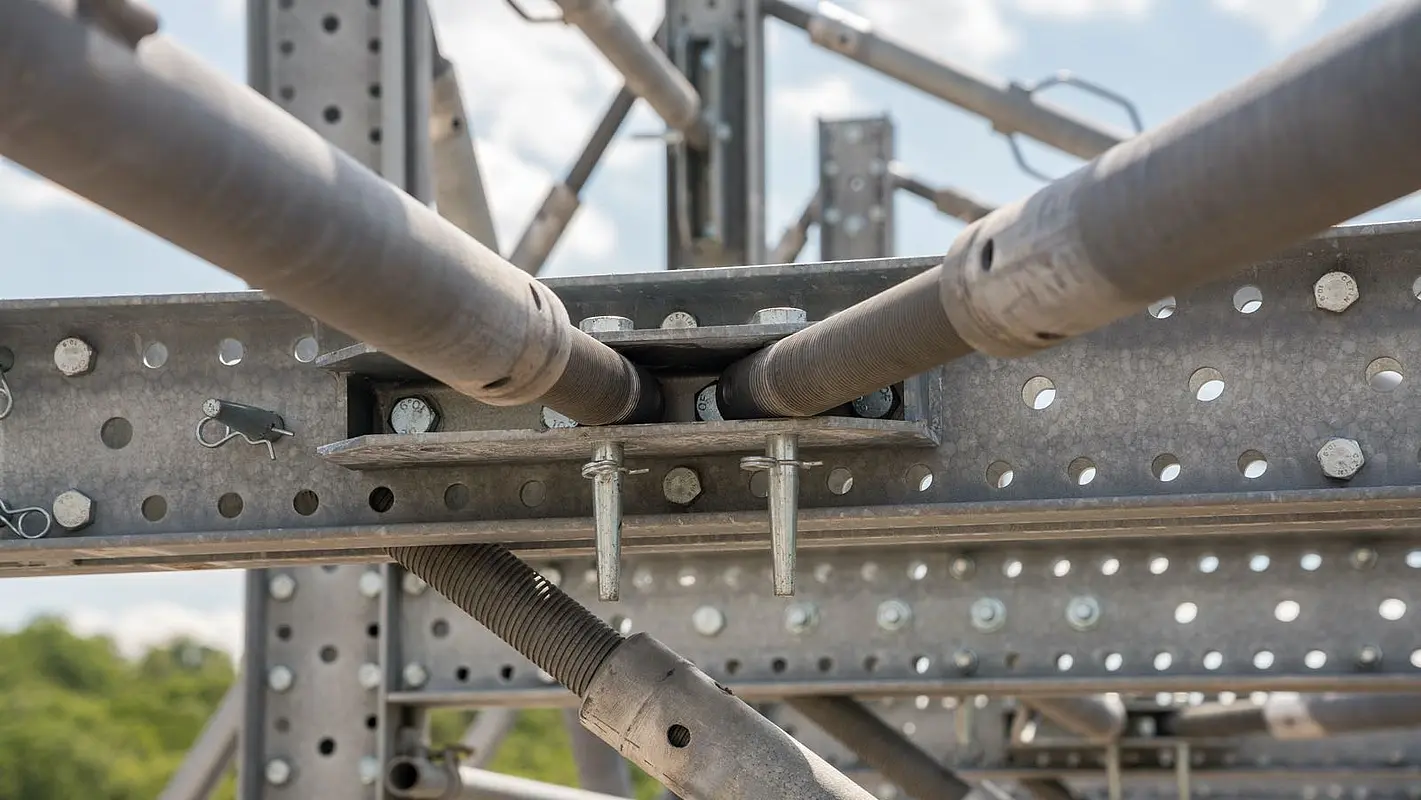

- Continuously perforated U-beams for installing the fasteners at any point.
- Formwork can be used at any desired angle
- Can also be used as a demolition traveller.
Technical data
Rail profiles | U-profiles width adjustable according to application |
Spindle struts | Any size possible from 50-480 cm |
Lengths of scaffold tubes | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 550 | 600 cm |
Couplers | Rigid, swivel and half couplers |
Lengths of walers | INFRA-KIT M 150 | 200 | 250 | 300 | 350 | 400 | 450 | 550 | 600 cm INFRA-KIT L 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 550 cm |
Weights | INFRA-KIT M 73.84-298.3 kg = Ø 185.9 kg per running meter INFRA-KIT L 25.45-142.12 kg = Ø 78.68 kg per running meter |
Load transfer | Loads are transferred via the IK jack (180 kN). Heavy-duty fixed and swivel castors 30 kN/60 kN |
Beam connections | Numerous different adapters available. All adapters can be bolted together. |
Corrosion protection | Fully hot-dip galvanised |
Accessories | Wheel connection, heavy-duty fixed castors, heavy-duty swivel castors, jack, PROTECTO / MODEX side protection system |
