INFRA-KIT
INFRA-KIT is a modular system for infrastructure projects. It offers maximum flexibility with a minimal number of required system parts.
Successful infrastructure projects with the modular INFRA-KIT system; greatest flexibility with just a few components. The system can be used in a variety of applications, e.g. as wall formwork, cantilevered parapet bracket, parapet traveller or shoring for composite, precast and in situ concrete bridges; up to sophisticated structures for tunnels, bridges, Safescreens or self-climbing formwork.
Videos & photos
Construction of Storstrøm-Bridge
In use for the construction of a viaduct on the Bari-Naples railway line.

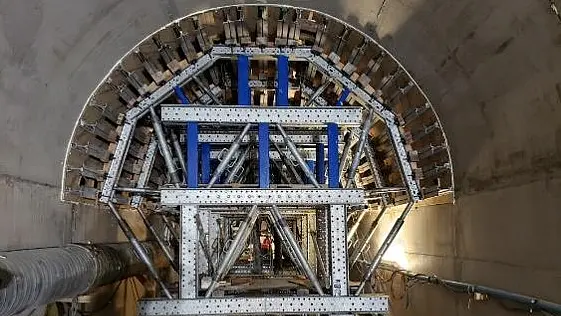

INFRA-KIT for tunnel application (Horseshoe Creek, Dallas).

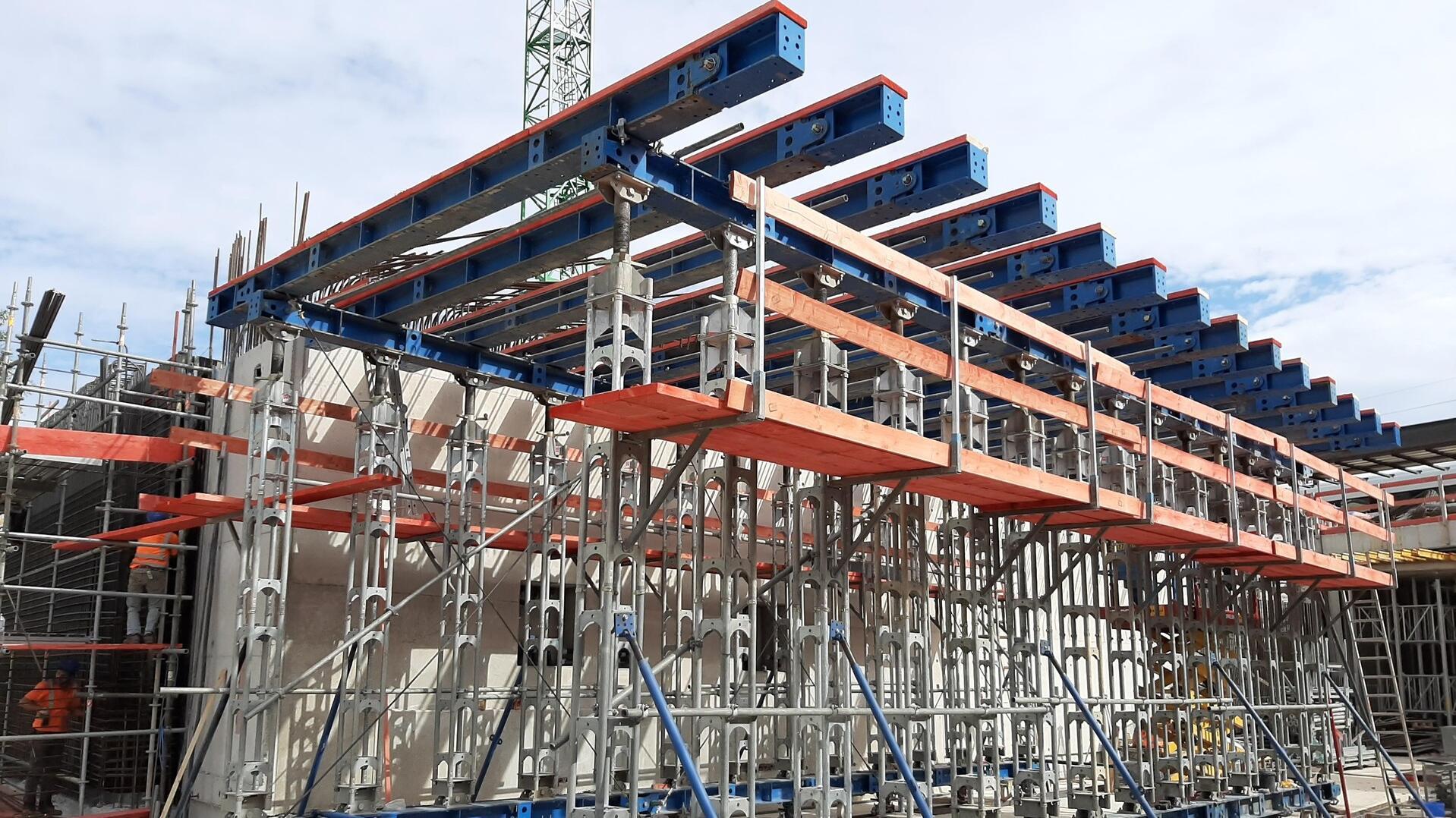

INFRA-KIT H beams in use.

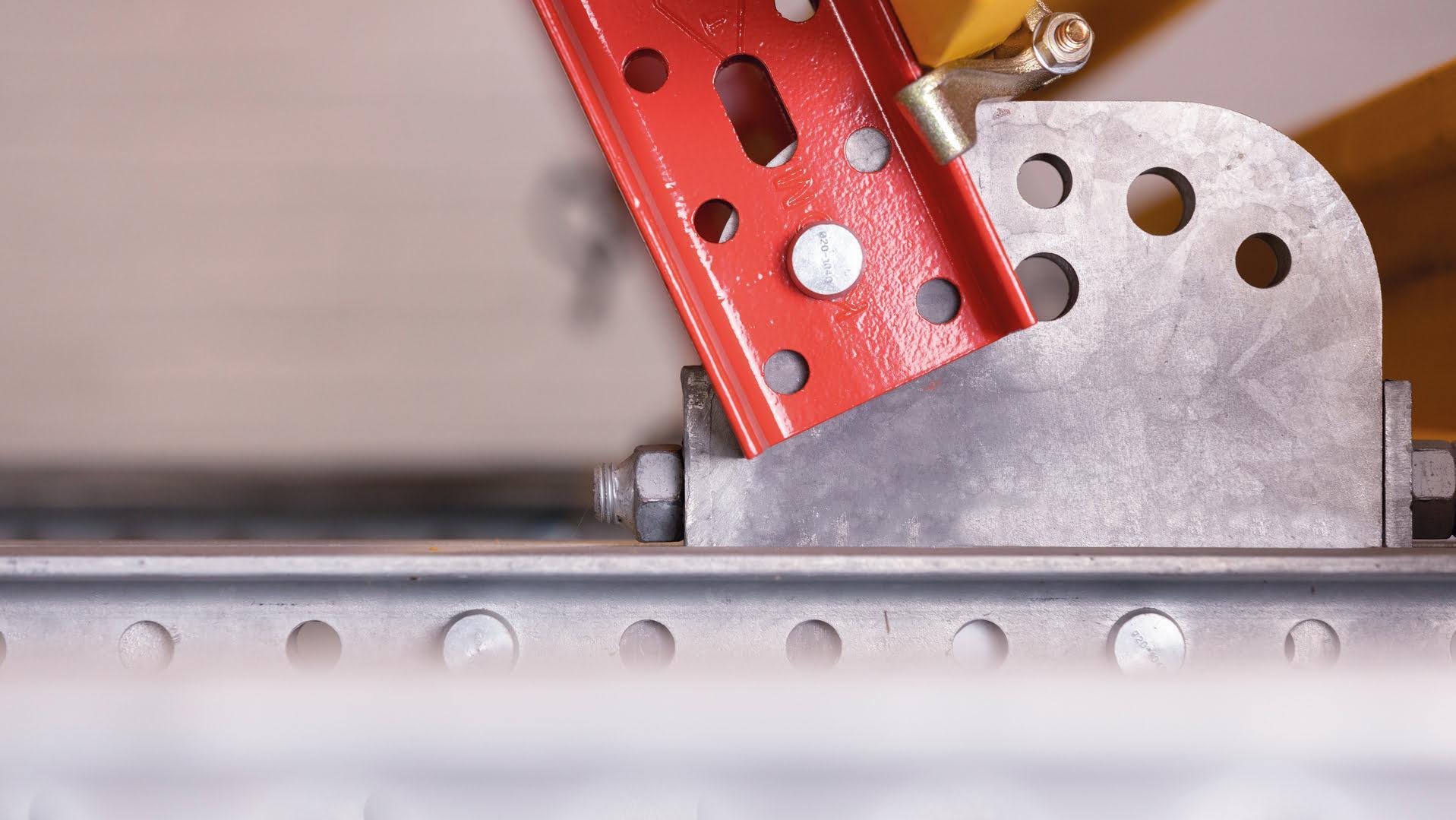

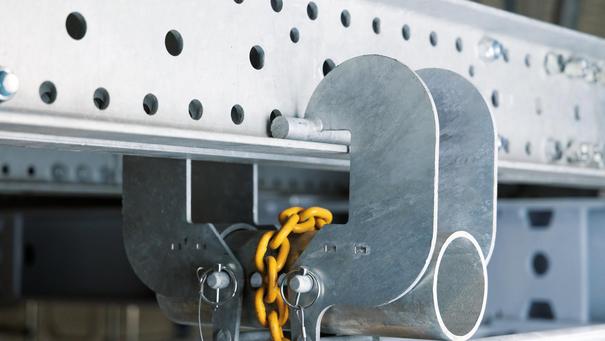

Connections for adapters and compensating connectors enable secure, articulated or flexurally rigid connections.

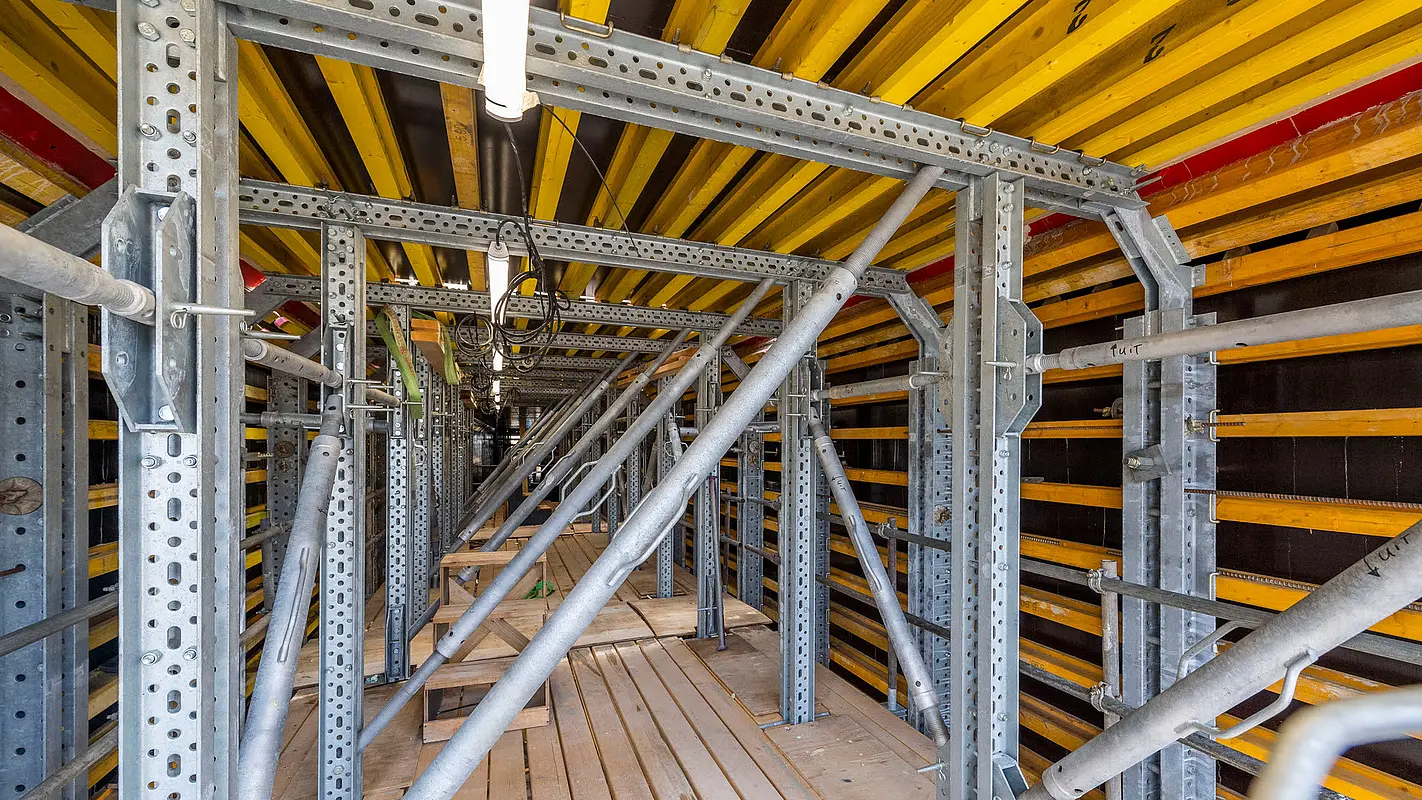

Beams and struts from the load classes Infra-Kit L (Light) and M (Medium).
Product advantages
Work productively
- Economical infrastructure construction with only a few system components and minimal planning; expensive special configurations not required
- Pre-assembly possible, increasing efficiency in tight spaces
- Just right for every application: Beams of different lengths available for all three load classes
- Plug connectors and captive centering bar ensure quick and simple assembly
- Easy to insert tie rods for bracing
- Base jack can divert high loads; minimal material required
Work safely

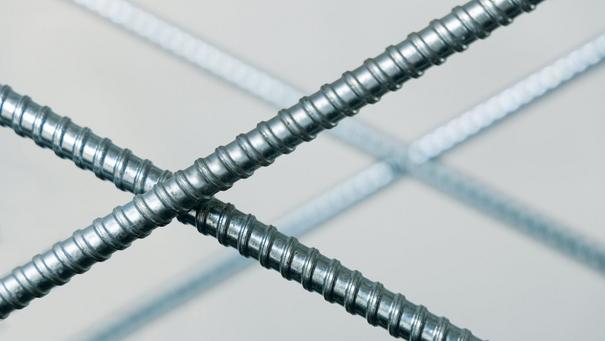

- Diagonal bracing with tie rods ensures stability
- Using high grade steel and hot dip galvanised steel ensure long serviceable life and stability
- Standard walkway brackets such as PROTECTO or MODEX side protection keep workers safe
Application & use
Download the user guide here. Click on the name of a chapter to access it directly.
Overview of user guide
Technical data
INFRA-KIT H | |
Main beam lengths | 62 | 175 | 300 | 450 | 600 cm |
Beam connections | Connecting pin (18% flexural strength) Waler joint with screws (37% flexural strength) Waler joint with Main Beam Joint Plate and screws (83%) |
Vertical supports | Load-bearing frame prop | INFRA-KIT beam| MkII soldiers | MODEX HD Tower |
Frame section lengths | 50 | 75 | 100 | 150 | 200 cm |
Support connections | Prop jack-2 | Pin-jointed Base Plate |
Spindle range | 0 cm – 30 cm | resp. 0 cm – 60 cm (with 2 prop jacks) |
Angular compensation | From 0° to max. 7° |
Typical application heights | From 2.50 m up to 10.00 m |
Corrosion protection | Zinc dust primer on beam | Hot-dip galvanisation on accessories |
Accessories | Among others Centering bar and clip | Adjustable stop bracket Beam Clamp | Gangway Brackets and Posts | Struts |
INFRA-KIT L | |
Waler Lengths | 62,5 | 75 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 cm |
Waler connectors | Connector to walers or spindles with or without additional spindle adapter |

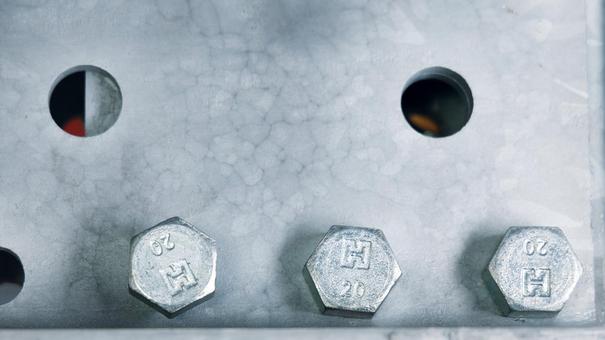

Bolts | Ø 16 and Ø 20, depending on load |

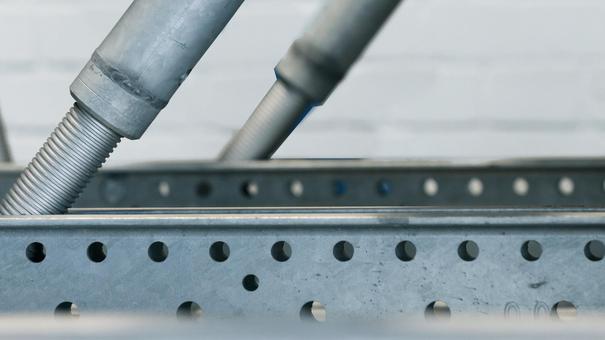

Spindle length | Spindles for light and heavy loads available; from 50 cm to 480 cm in different extension lengths |
Corrosion protection | Hot-dip galvanised |
INFRA-KIT M | |
Waler lenghts | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 cm |
Waler connectors | Connector to walers or spindles with or without additional spindle adapter |
Bolts | Load dependend Ø 20 and Ø 25 |
Spindle lengths | Spindles for light and heavy loads available; from 50 cm to 480 cm in different extension lengths |
Corrosion protection | Hot-dip galvanised |
