Get to know the true quality of MODEX: It performs excellently as a facade scaffold, but comes into its own on complex, angled frontages.
Videos & photos
Product advantages
Work productively

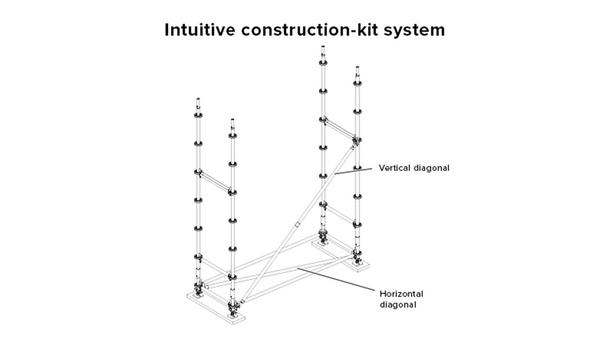

- Easy handling due to intuitive construction-kit system with just 4 basic elements
- High load capacity and incredible stability thanks to force-locked connections

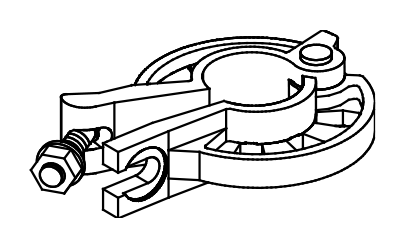

- Six additional connections possible with the Variocup (such as for circular scaffolding)
- High flexibility as a result of up to 8 possible connections in horizontal and vertical directions
- Countless areas of application due to extensive accessory parts program
- All parts are hot-dip galvanized from the inside and the outside
Work safely
- Safe one-man assembly at any height due to the upturned edge on the connection cups
Application & use
Download the user guide here. Click on the name of a chapter to access it directly.
Overview of user guide
Technical data
Vertical post lengths | 100 | 150 | 200 | 300 | 400 cm |
Connecting cups | 50 cm grid | 8 possible connections in every direction |
Ledger lengths | 25 | 74 | 82 | 90 | 101 | 113 | 125 | 150 | 168 | 180 | 200 | 250 | 300 | 400 cm |
Connection type | Via undetachable wedge |
Plank type | Hollow box plank | Steel plank | Alu plank |
Base jack type | Base jack 45/3.80 | 70/3.80 | ID-base jack 38/52 |
Component max. weight | Vertical post 400 = 20.20 kg |
Relevant standards | Complies with EN 12810 and EN 12811, Pt. 1 |Approval from DIBt (German approval and assessment body for regulatory questions related to construction products and construction techniques) |
Corrosion protection | Complete hot-dip galvanization of all system parts |
Erection/dismantling times | 8 – 10 h/t |
