RASTO®
RASTO is a versatile panel formwork, the ideal solution for small and mid-size projects, especially in residential construction.
RASTO is a frame panel formwork that can – up to a panel width of 90 cm – be used by hand without a crane or as large-area units with a crane. With PEFC™-certified form liners.

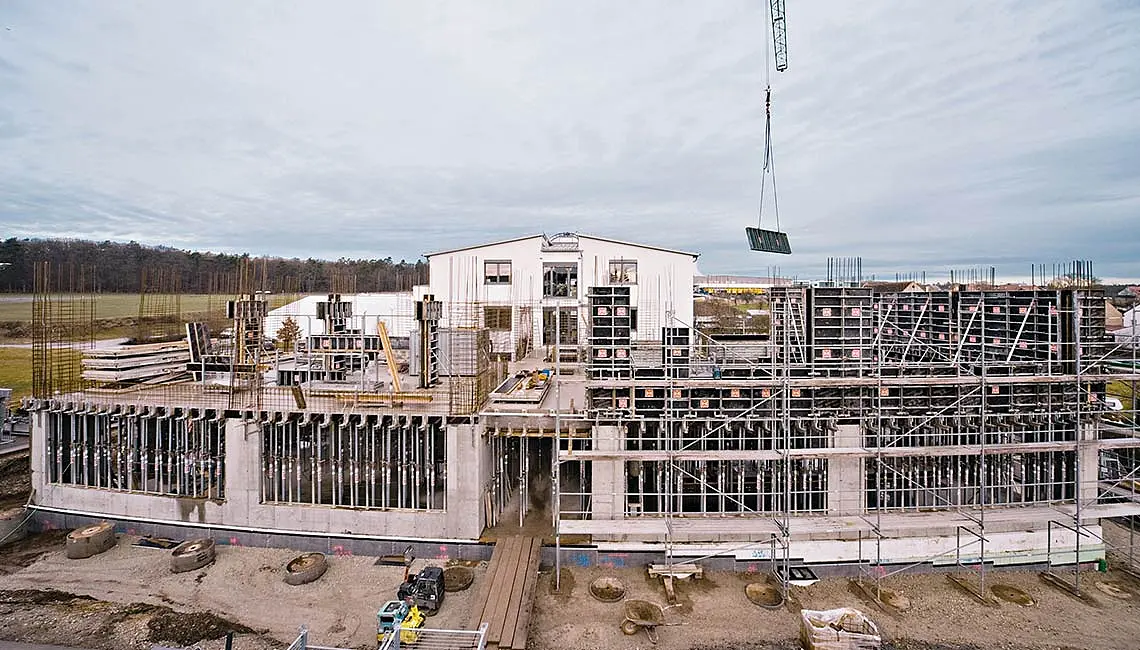

Videos & photos
Tight, tension-resistant and aligned connection of the elements in one operation with the RASTO clamp.
Product advantages
Work productively
- Highly versatile wall formwork system with the same connection elements for every project size
- RASTO multi-purpose panels for easy forming of columns and corners
- Craneless forming possible due to low weight of basic RASTO and TAKKO panels
- RASTO aligning clamps provide a strong, tight and flush panel connection in just one
working step - RASTO XXL panel for large-area forming
Work safely
- Longer service life due to the robust, galvanized steel frame profile with 12 cm thickness
- The easy-to-use outer corner clamp makes an outer corner out of two standard panels
- The adjustable aligning clamp permits adjustments up to 15 cm and flush, force-fit connections
Application & use
Download the user guide here. Click on the name of a chapter to access it directly.
Overview of user guide
Technical data
Panel widths | 30 | 45 | 50 | 60 | 75 | 90 | 240 cm |
Panel heights | 30 | 45 | 50 | 60 | 75 | 90 | 240 cm |
Multipurpose panels | 70 x 150 | 70 x 270 | 70 x 300 cm |
Profile thickness | 12 cm steel frame profile |
Form lining | Plywood (min. 280 g/m² coating) | ECOPLY full plastic |
Lining thickness (coating) | Plywood (min. 280 g/m² coating) | ECOPLY full plastic |
Average weight | 40 to 65 kg/m² (including connection parts) |
Max. concrete pressure | 60 kN/m² (line 6) |
Corrosion protection | Fully galvanized steel frame and connection elements |
Relevant standards | Complies with DIN 18216 | EN 1993 |
Standard connection | RASTO aligning clamp (aligned and flush connection) |
Special connection | RASTO adjustable clamp | Outer corner clamp |
Inner corners | 30/30 cm (with 2° play for easing) |
Hinged corners | From 60° to max. 150° angles |
Outer corners | Basic panel with outer corner clamps |
Assembly/stripping times | t = 0.4 – 0.6 h/m² |
Special features |
|
