INFRA-KIT Hammerhead Bracket

The heavy-duty bracket system is composed of H20 or aluminum beams with horizontal support frames and the INFRA-KIT system. The combination of these systems can adapt to the most difficult shapes and geometries being a preferred solution to shape hammerheads.

Photos

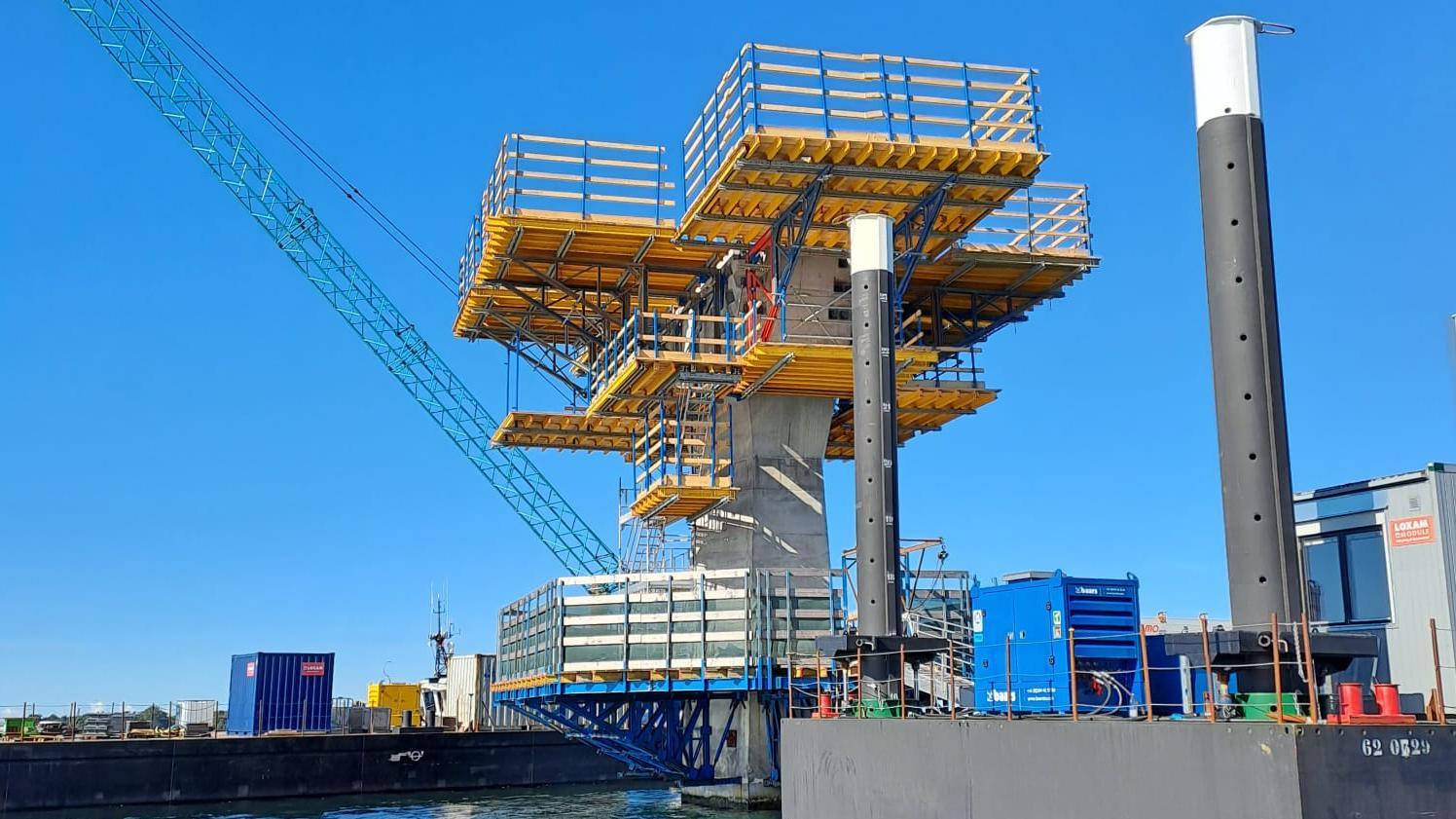

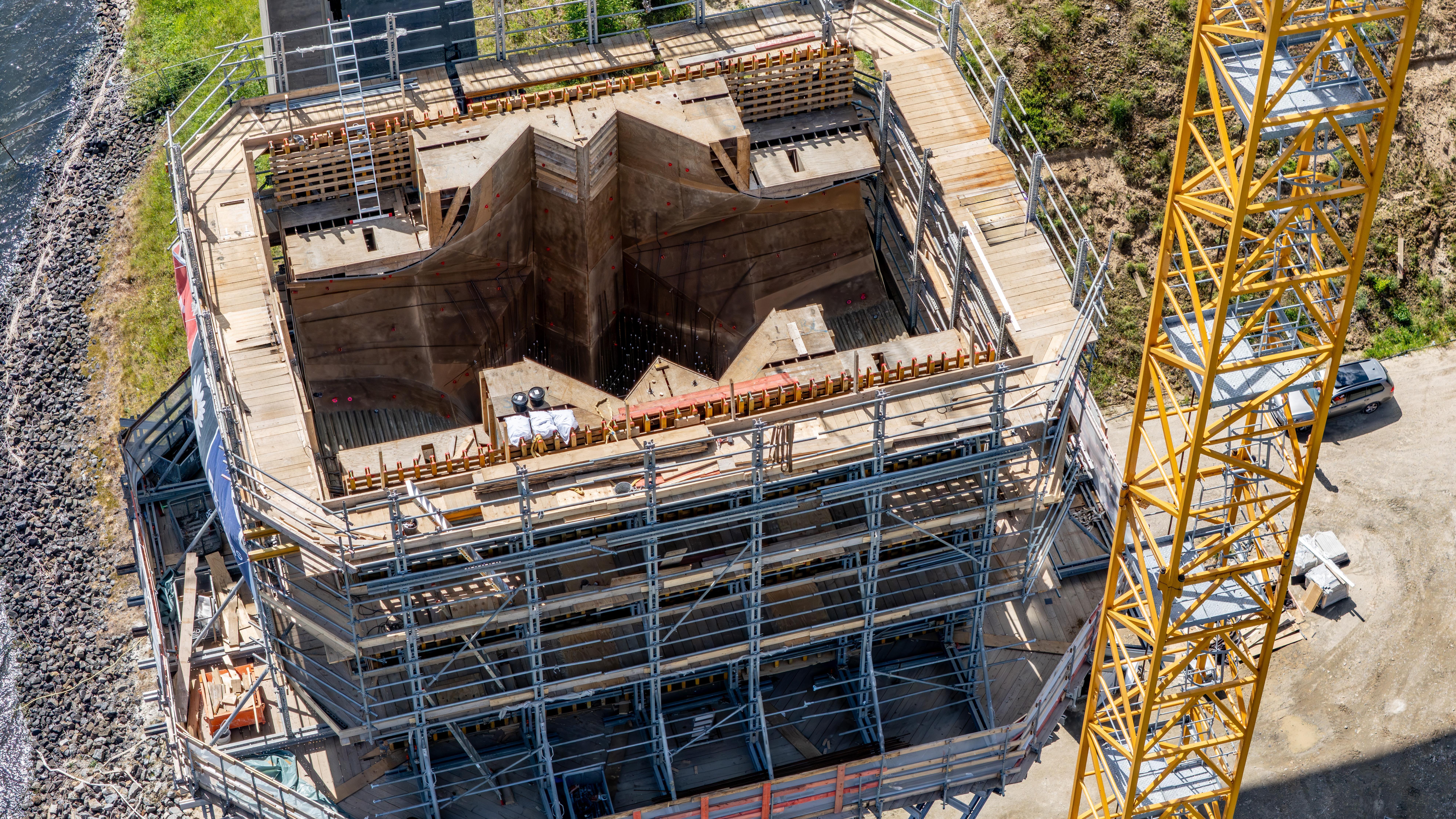

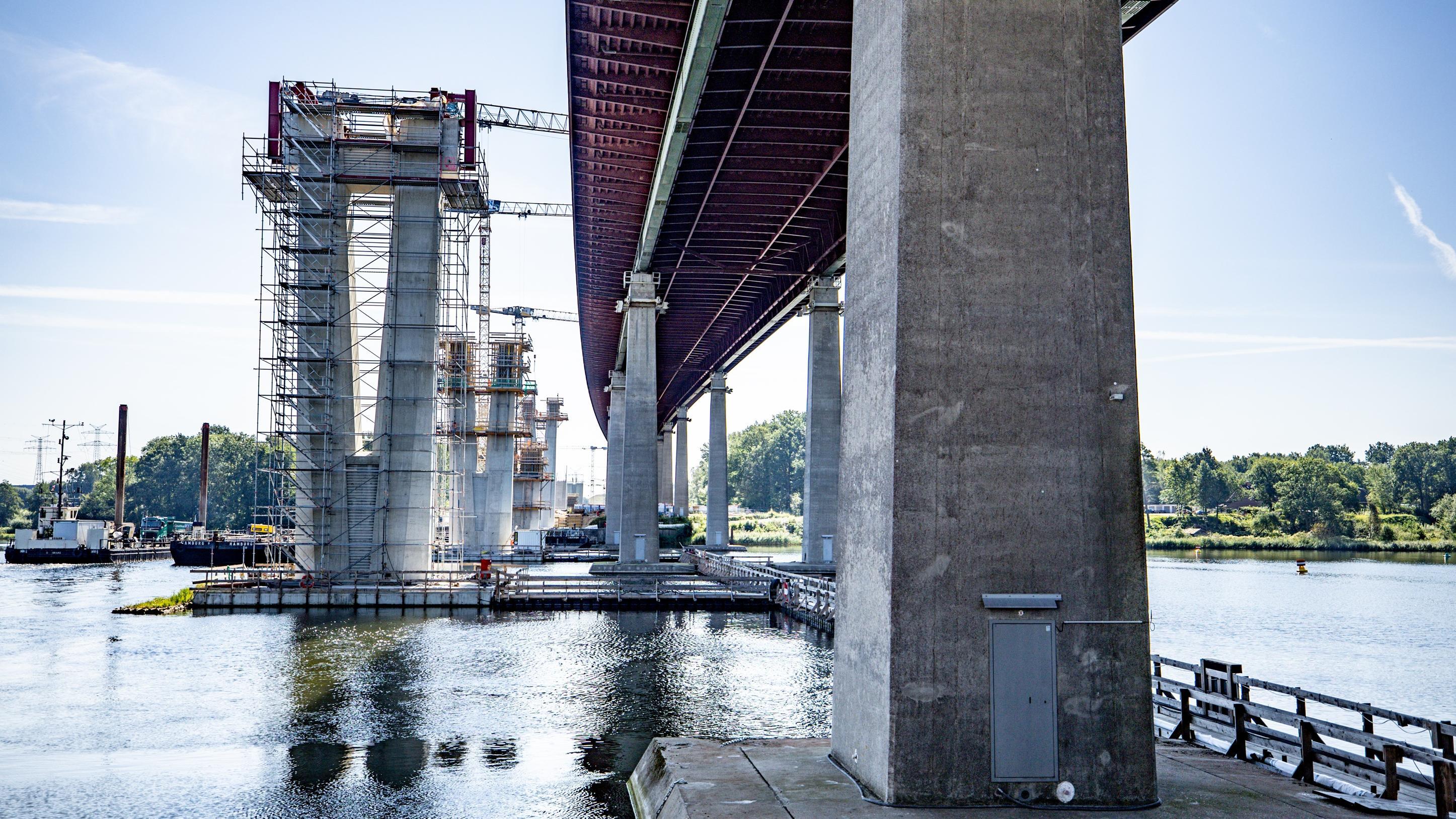

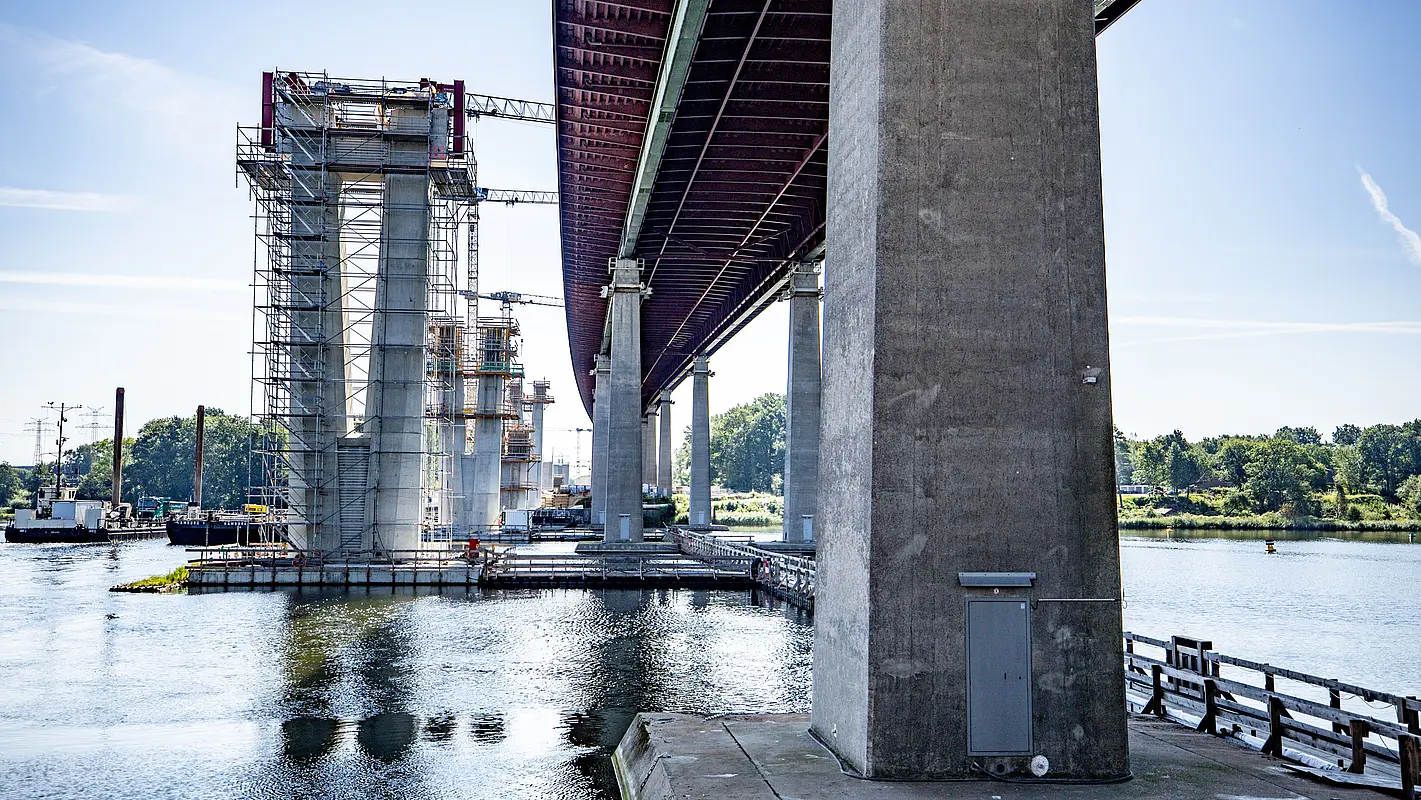

Storstrøm Bridge

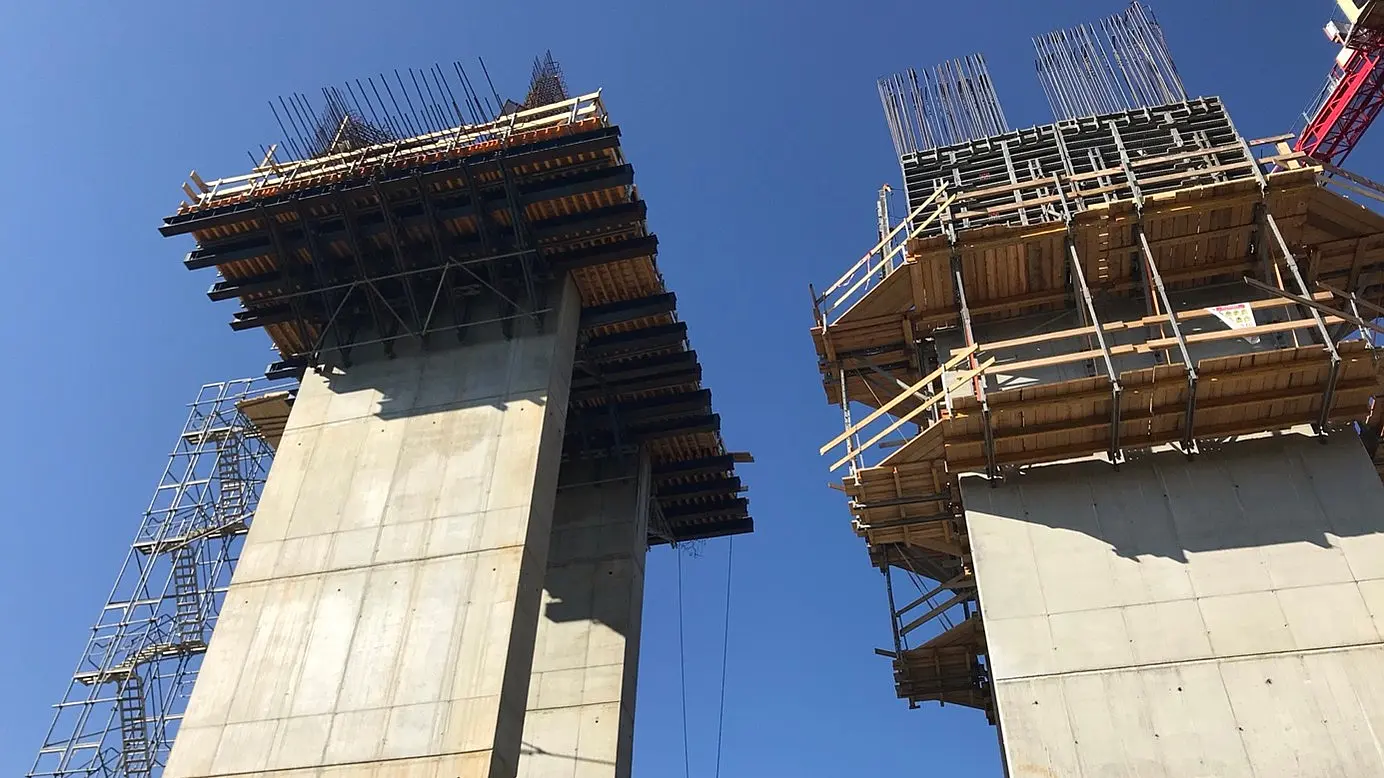

Sibiu Bridge

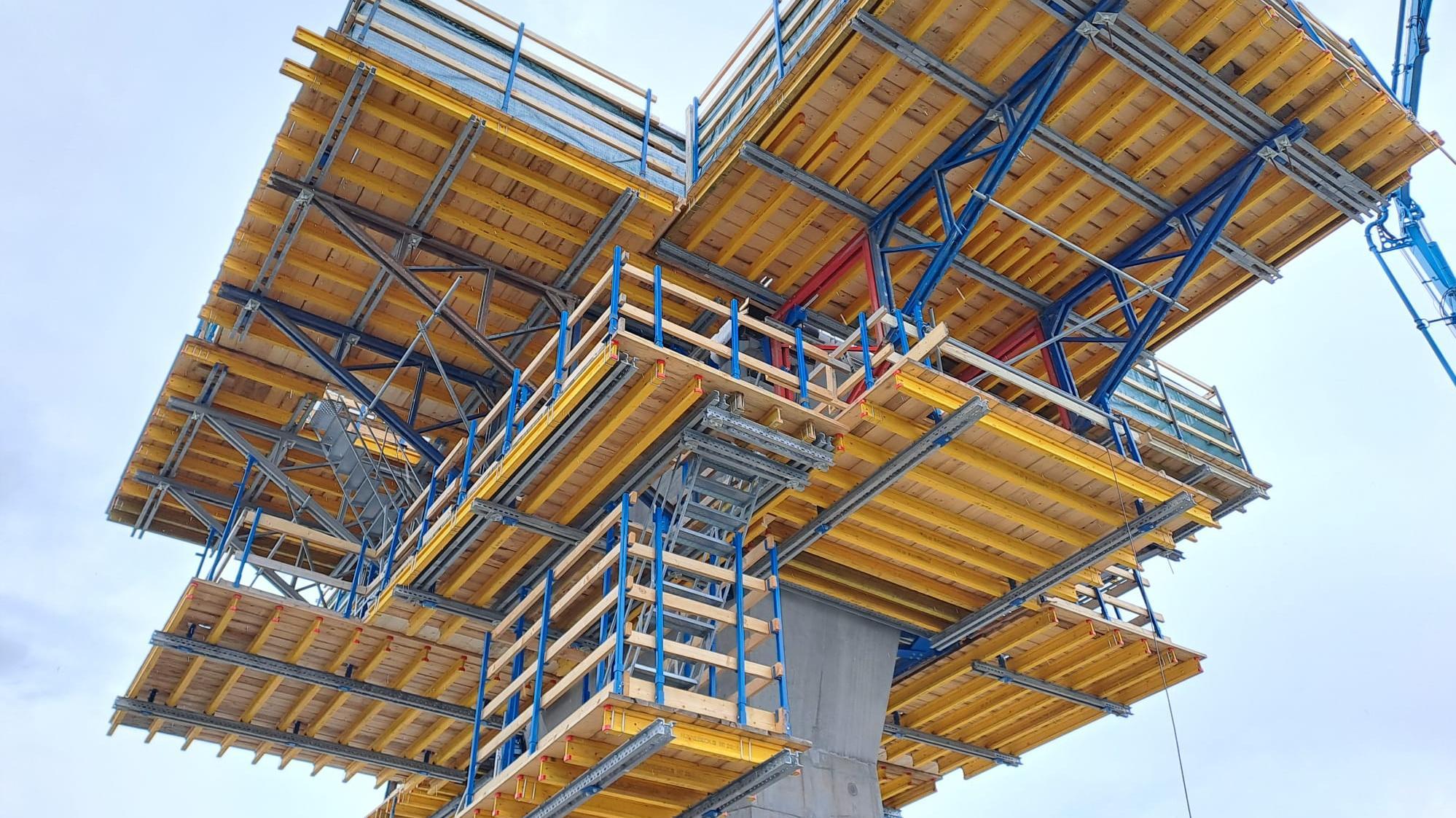

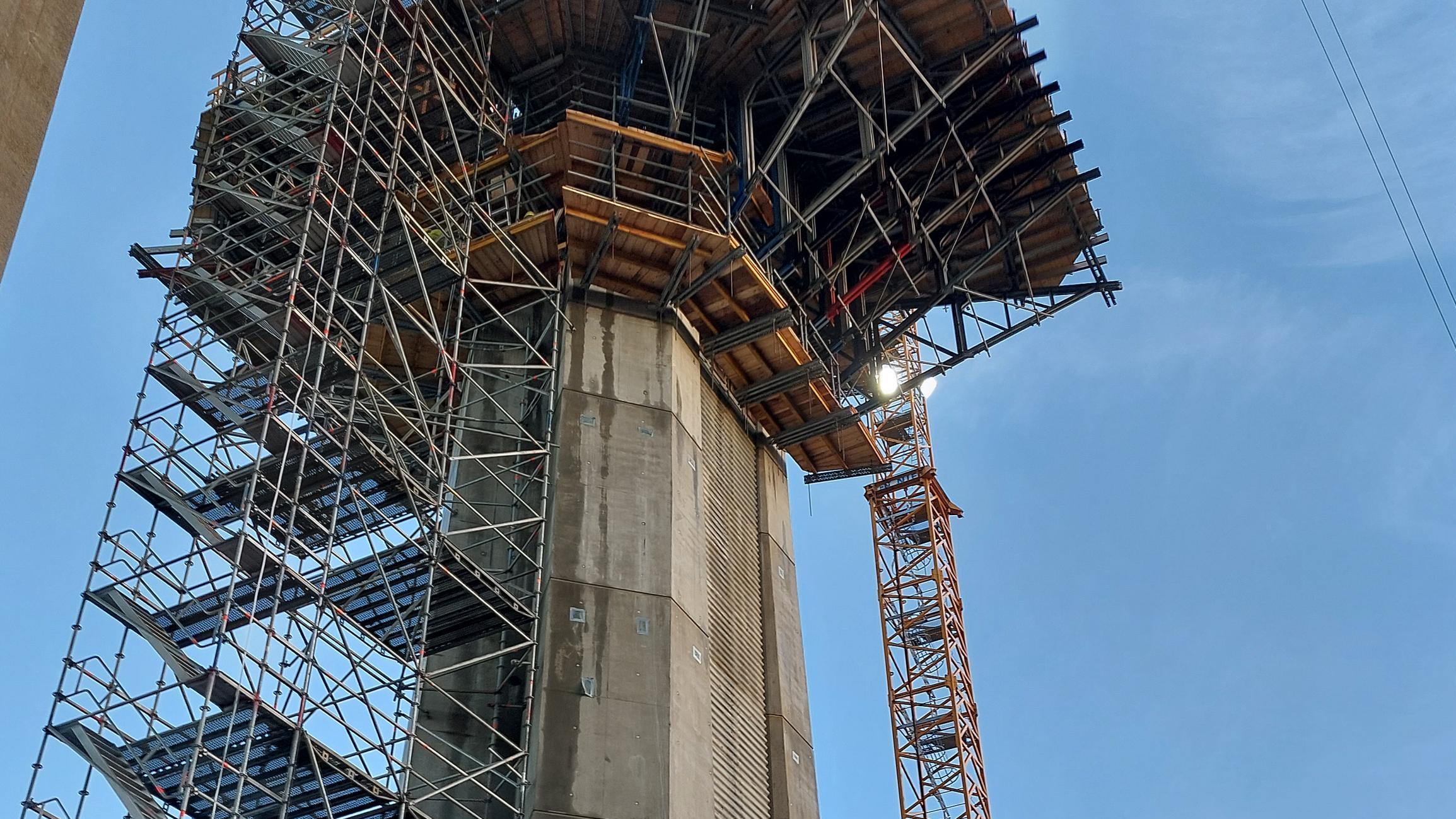

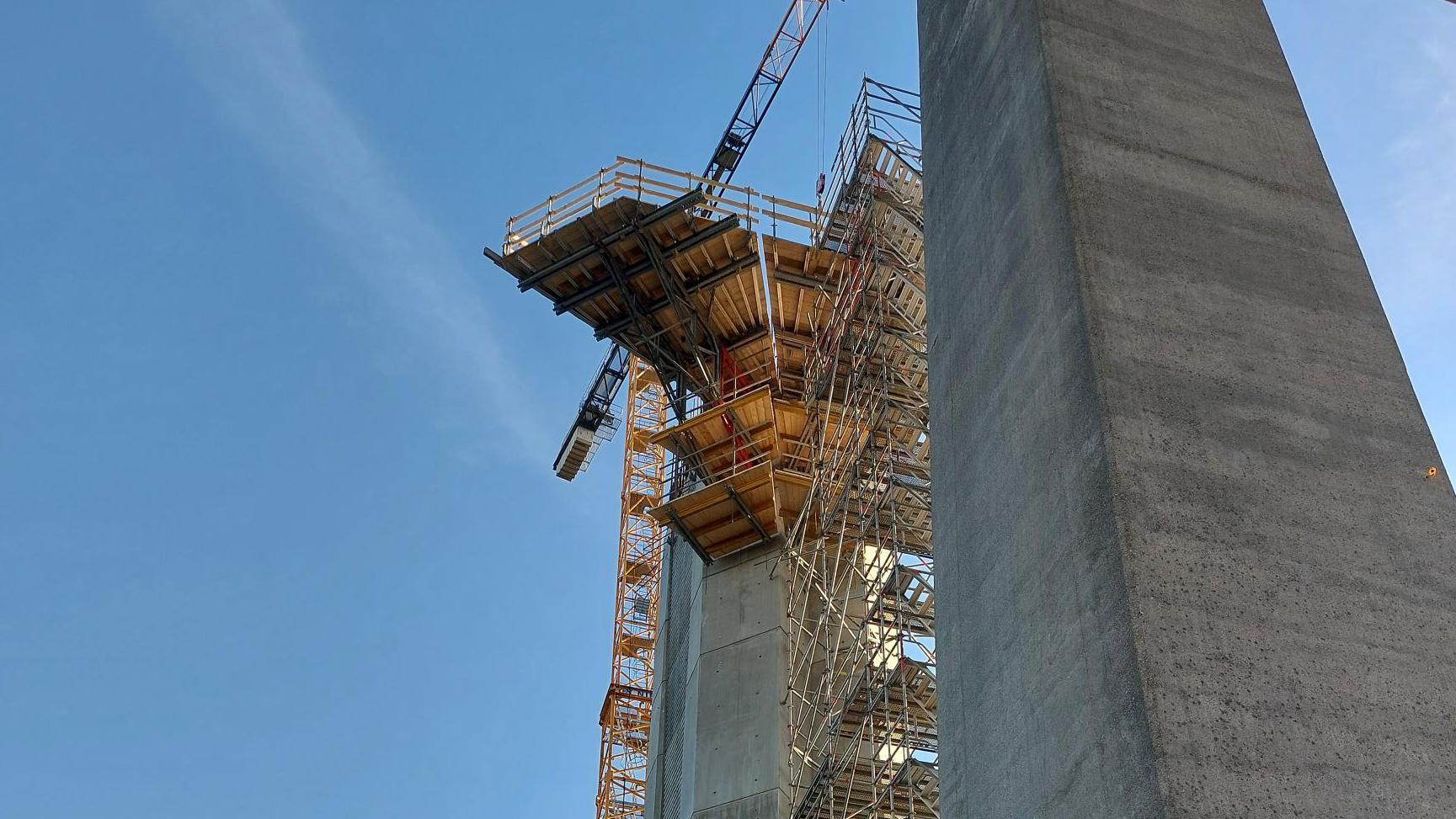

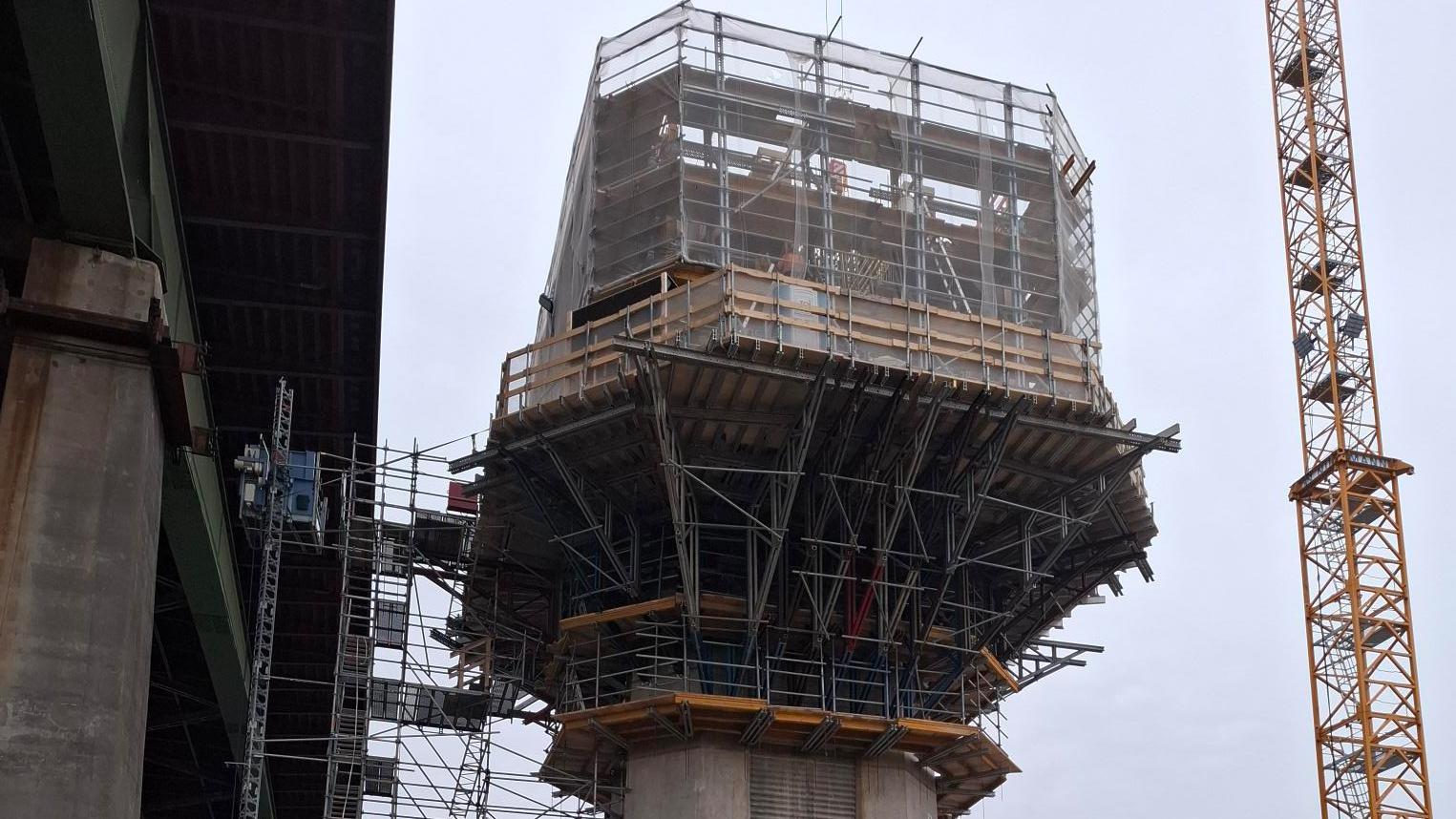

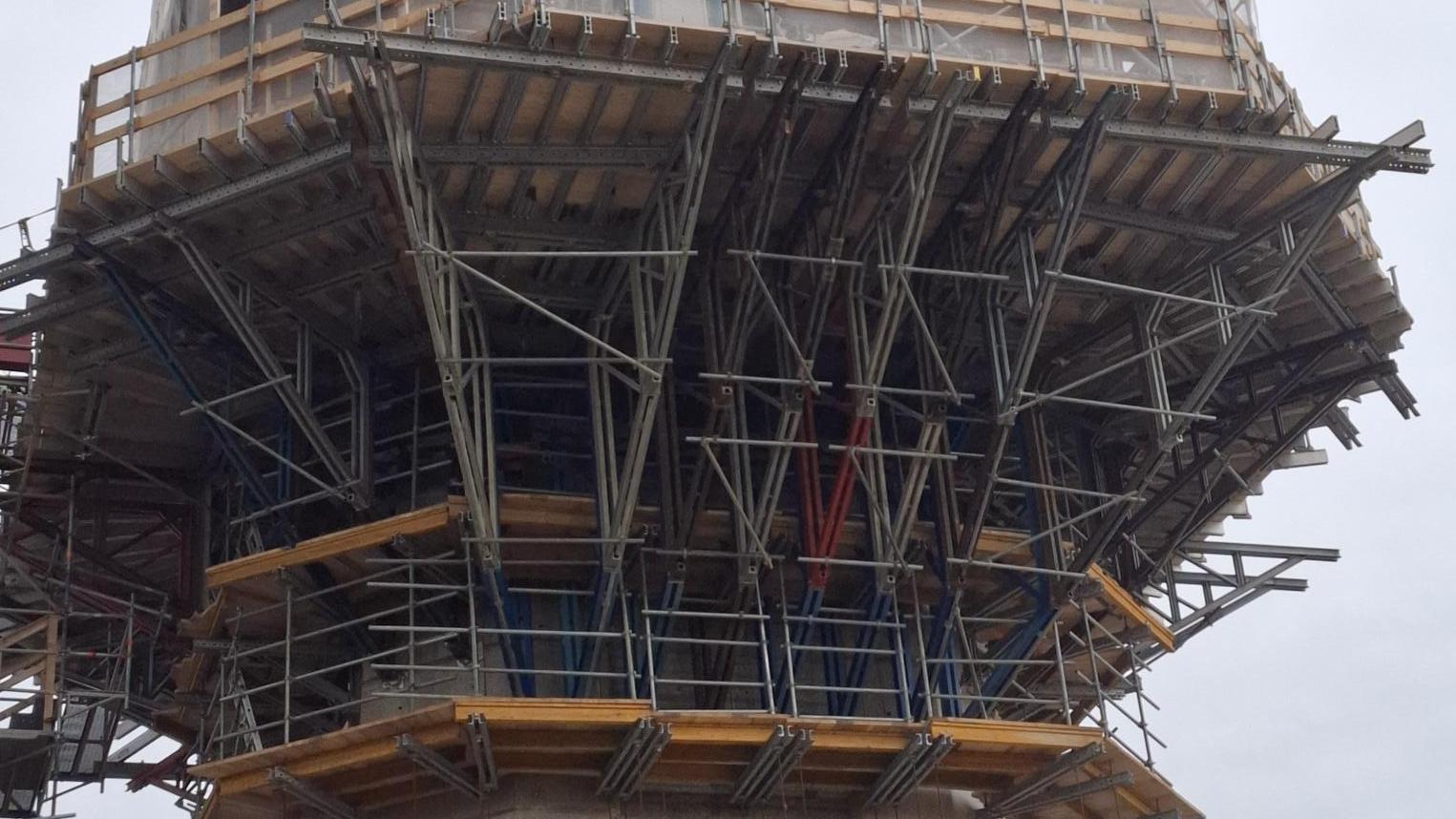

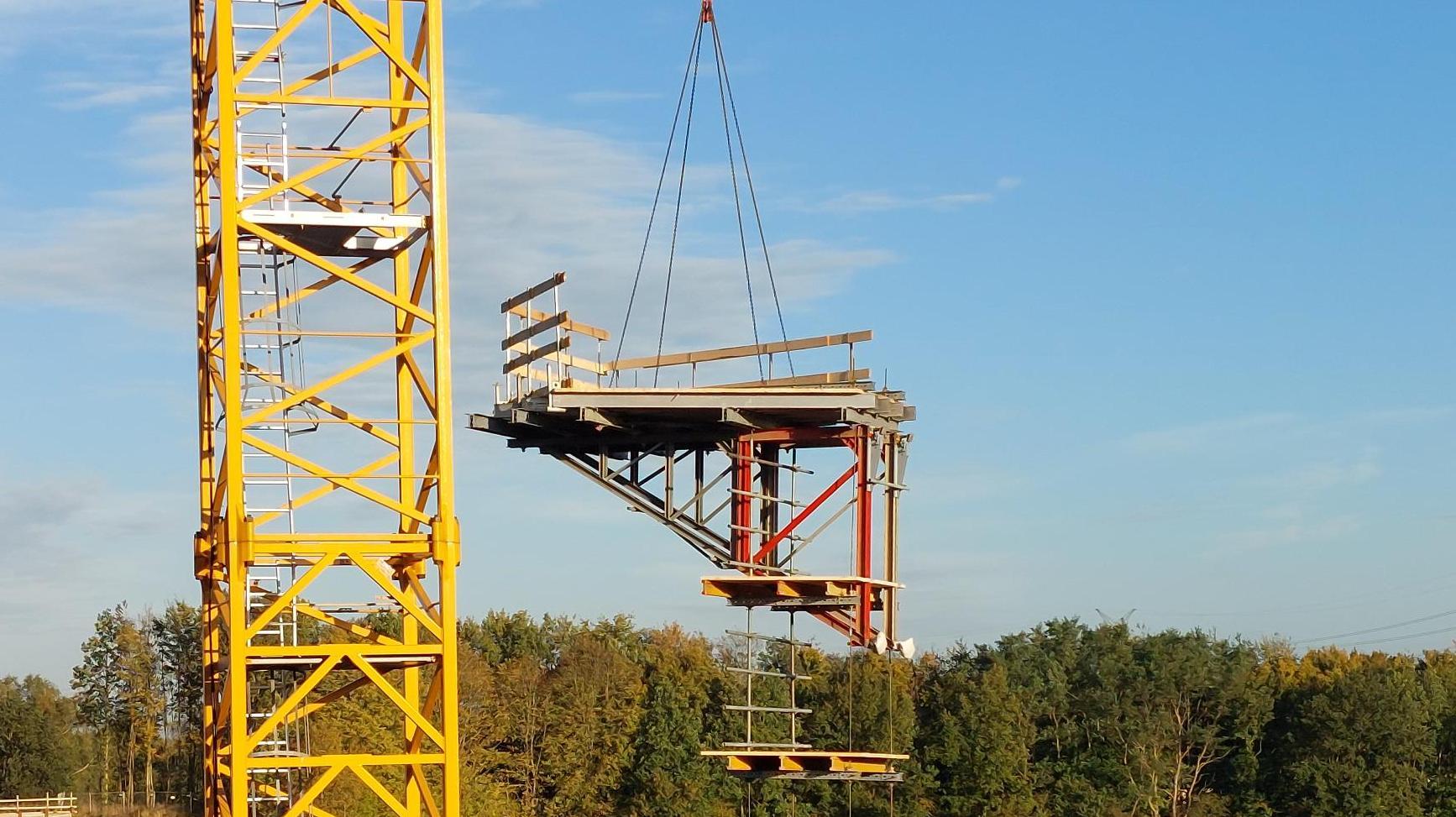

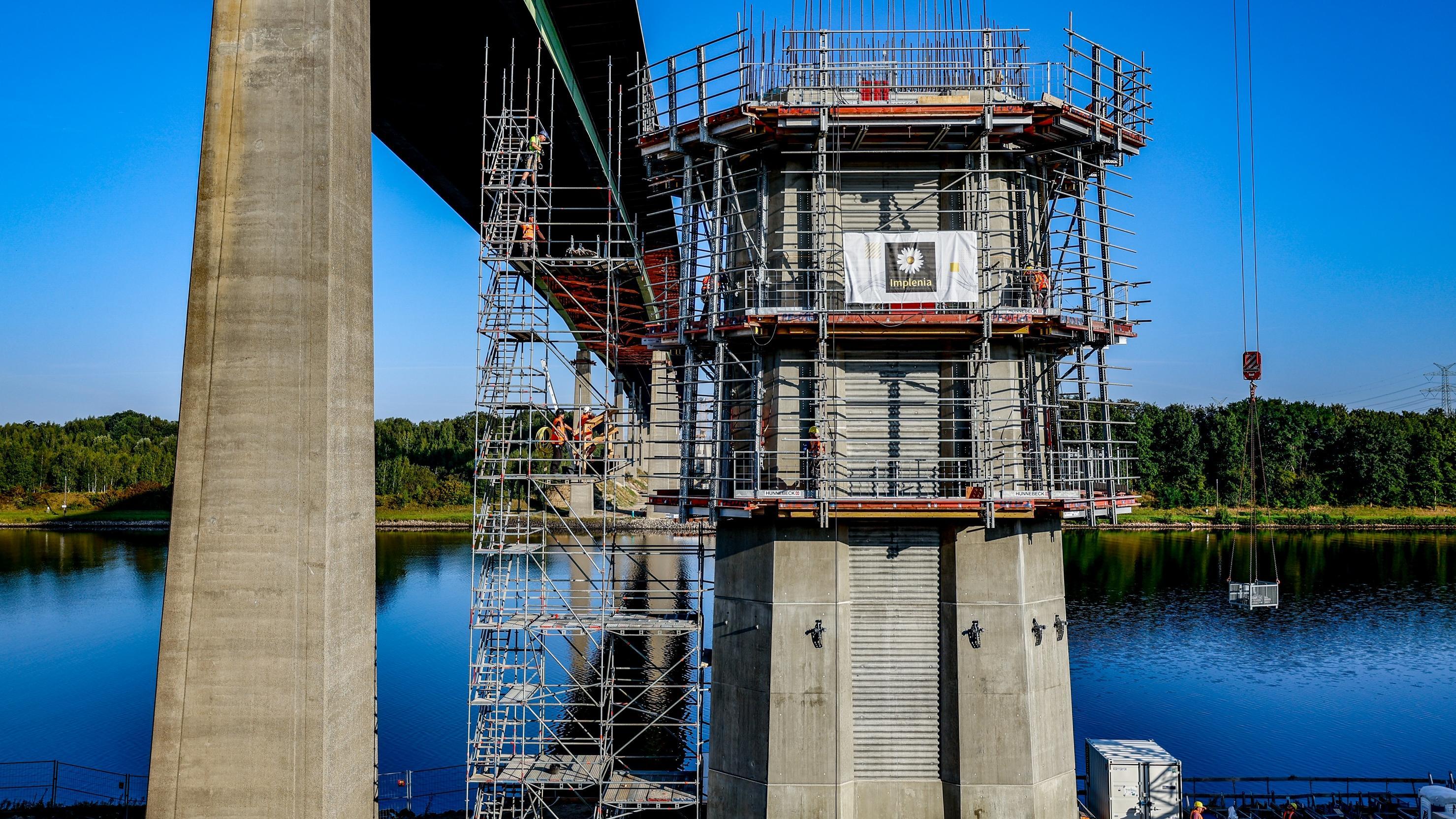

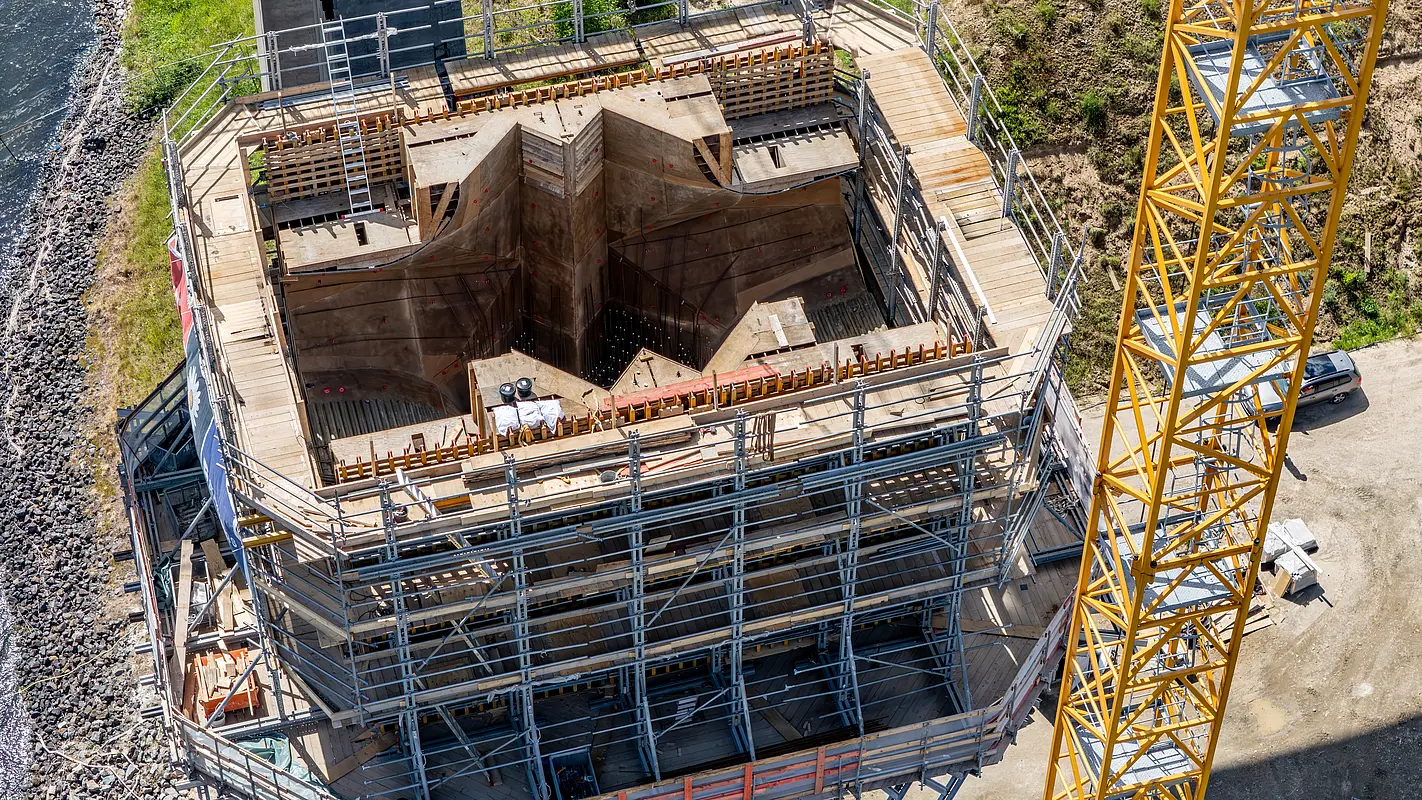

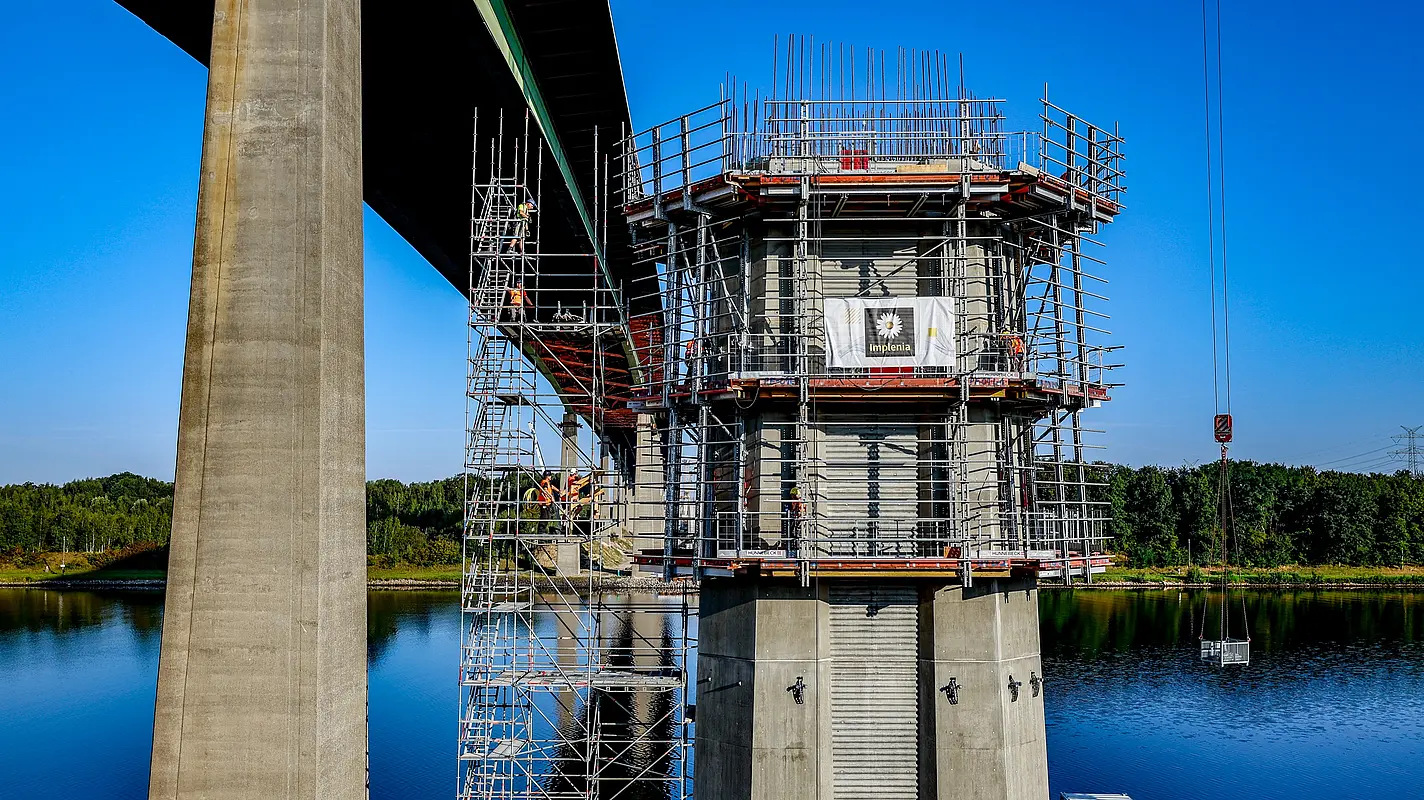

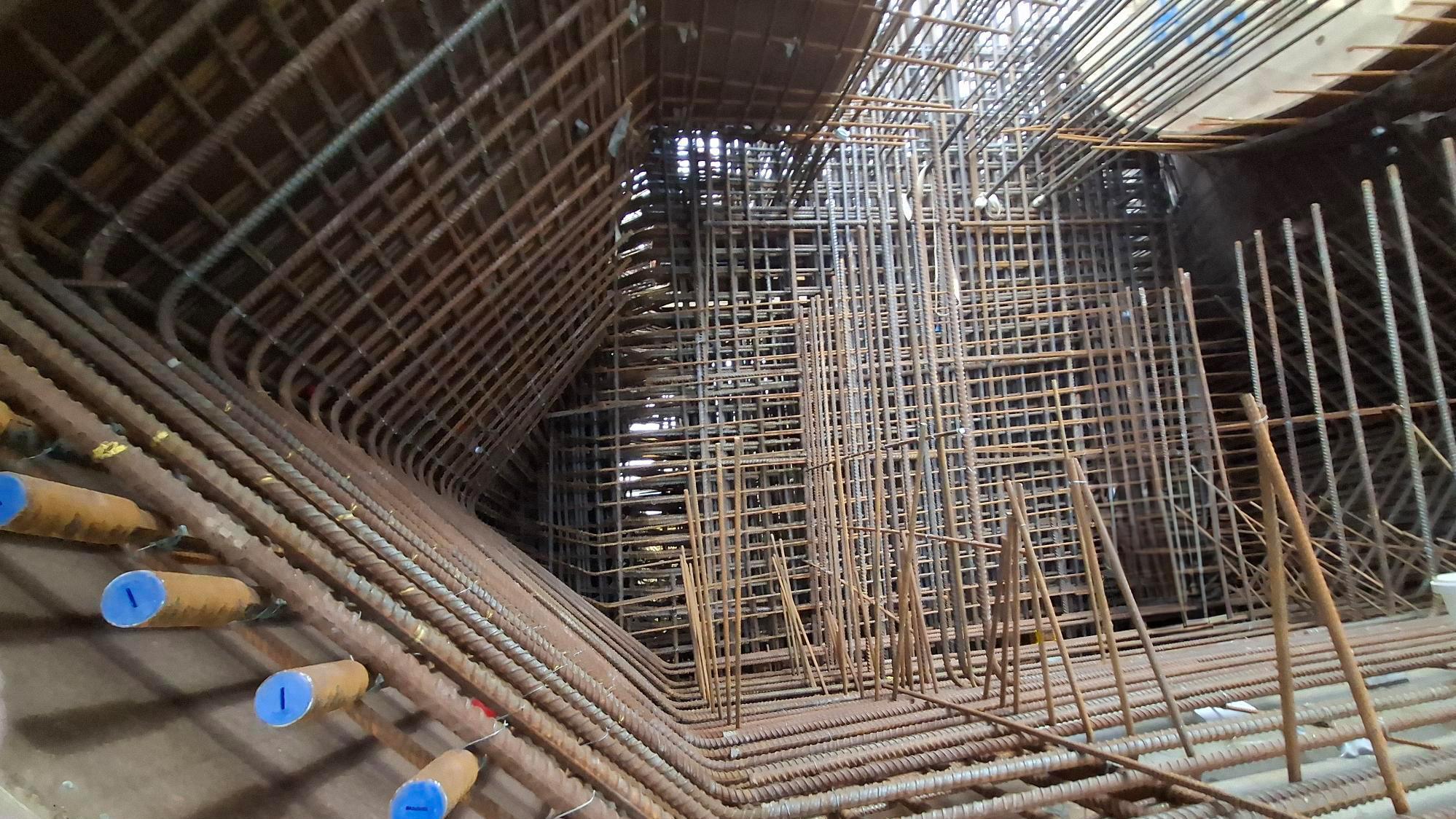

Rader High Bridge

1 / 12

Product advantages

Work safely

High level of occupational safety by using PROTECTO or MODEX side protection
Clean and smooth working area
Robust and durable
Small number of simple installation steps are quickly learned

Work productively

Rental ready to use solution
Quick assembly and disassembly
Offsite assembly and lifting in units possible
With various sizes and adaptations to the shapes and loads
Complex architecture easily accommodated with zero or limited special construction

Technical data

INFRA-KIT L
Fields of application	Tunnel construction, bridge and civil construction
Lengths of Walers	62,5 \| 75 \| 100 \| 125 \| 150 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500 \| 550 cm
Waler connectors	Connectors to walers or spindles with or without additional spindle connection
Bolts	Load dependent Ø 16 and Ø 20
Spindle lengths	Spindles for light and heavy loads available; from 50 cm to 480 cm in different extension lengths
Corrosion protection	Fully galvanised
Accessories	Connection options to side protection systems, scaffold tubes and wheels
INFRA-KIT M
Fields of application	Tunnel construction; bridge and civil construction
Lengths of walers	150 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500 \| 550 \| 600 cm
Waler connectors	Connectors to walers or spindles with or without additional spindle connection
Bolts	Load dependent Ø 20 and Ø 25
Spindle lengths	Spindles for light and heavy loads available; from 50 cm to 480 cm in different extension lengths
Corrosion protection	Fully galvanised
Accessories	Connection options to side protection systems, scaffold tubes and wheels
Support frames
Support frame type	Support frame 325 \| Weight = 171.00 kg
Tying bar	Tying bar 12/60 \| Weight = 18.20 kg
Additional components	Distance keepers and anchoring parts
Support frame type	Support frame 500 \| Weight = 305.00 kg
Tying bar	SF-tying bar 24/75 \| Weight = 60.00 kg
Additional components	SF-lower part 200 and base frame 200/2

Related products

The Hammerhead bracket is based on the modular beam-kit system INFRA-KIT, which offers maximum flexibility with just a few components. INFRA-KIT is equipped with numerous intelligent and sophisticated features and can be pre-assembled.
