TOPEC
Easy to handle, modular slab formwork for all constructions
TOPEC® modular slab formwork from Hünnebeck makes the shuttering and stripping of slabs much faster and demonstrably more economical than conventional slab formwork systems.
Videos & photos
More about the fast TOPEC® modular slab formwork in this video.
By activating the video you accept the YouTube privacy policy.
To the privacy policy
Hünni explains safe assembly of TOPEC® modular slab formwork
Safe assembly and dismantling from the ground for heights up to 3.50 m in three easy steps: Simply hook in - push up - brace.
Columns and other obstacles can be easily bypassed with TOPEC adjustments.

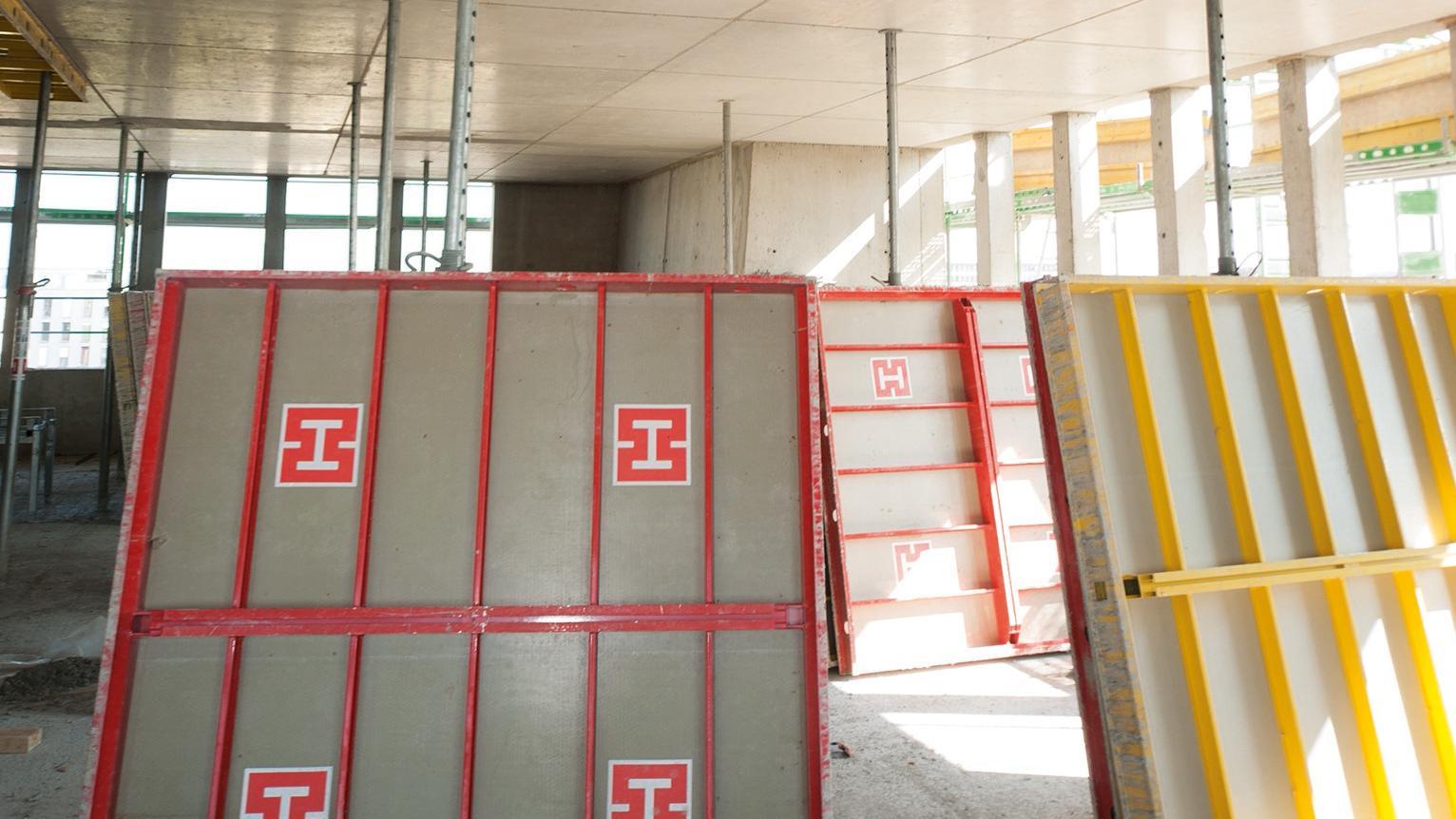

This 180 x 180 cm large panel has 3.24 m² of forming area.

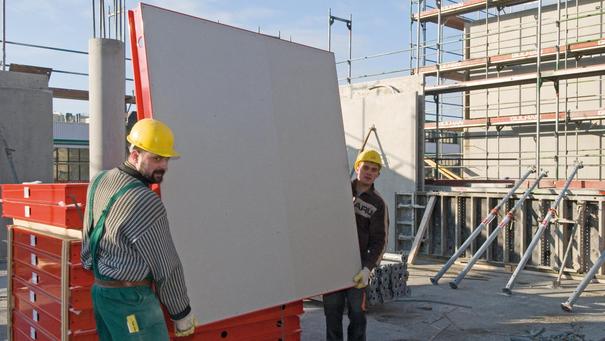

TOPEC's lightweight aluminium design ensures ergonomic and fatigue-free operations.

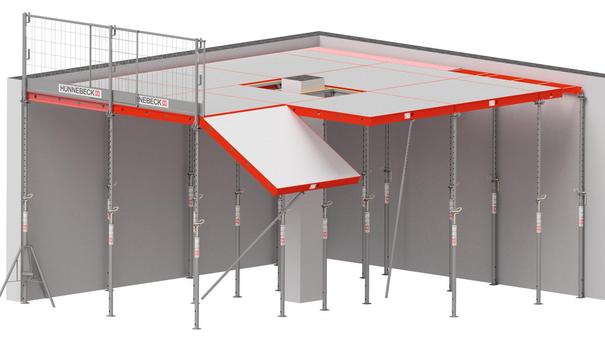

Can be used with PROTECTO side protection without any problems.
Product advantages
Work productively
- Quick erection with the Giant Panel 180 x 180 cm, with a forming area of 3.24 m²
- Infills can be created quickly using TOPEC Adjustment Panels
- Only two components required: panel and prop
- Outstanding concreting results with ECOPLY plastic form sheet; easy cleaning and minimal wear, equipped with counter-sunk head rivets
Work safely
- All steps can be performed ergonomically from the ground
- Sturdy, lightweight aluminium components are easy to handle, reducing fatigue
- Construct edge protection using system components
Application & use
Download the user guide here. Click on the name of a chapter to access it directly.
Overview of user guide
Technical data
Panel widths | 45 | 60 | 75 | 90 | 180 cm |
Panel lengths | 90 | 180 cm |
Adjustment panel | Panel 55 – 90 x 90 cm Panel 55 – 90 x 180 cm |
Profile thickness | 14 cm aluminum frame profile |
Form sheet | ECOPLY® plastic form sheet | Plywood (340 g/m²) |
Form sheet thickness | 11 mm ECOPLY® plastic form sheet | 10 mm plywood |
Weight/m² | 16kg/m² |
Relevant standards | Complies with DIN 18202 |
Maximum slab thickness | 75 cm (with 60 cm wide panels) |
Corrosion protection | Powder-coating |
Standard shoring | EUROPLUSnew props 20 kN | 30 kN |
Special shoring | MODEX scaffolding |
Supports | TOPEC bearing | Edge support N | Drop Head |
Assembly/stripping times | t = 0.20 – 0.40 hours/m² |
Special features |
|
