INFRA-KIT Parapet Bracket

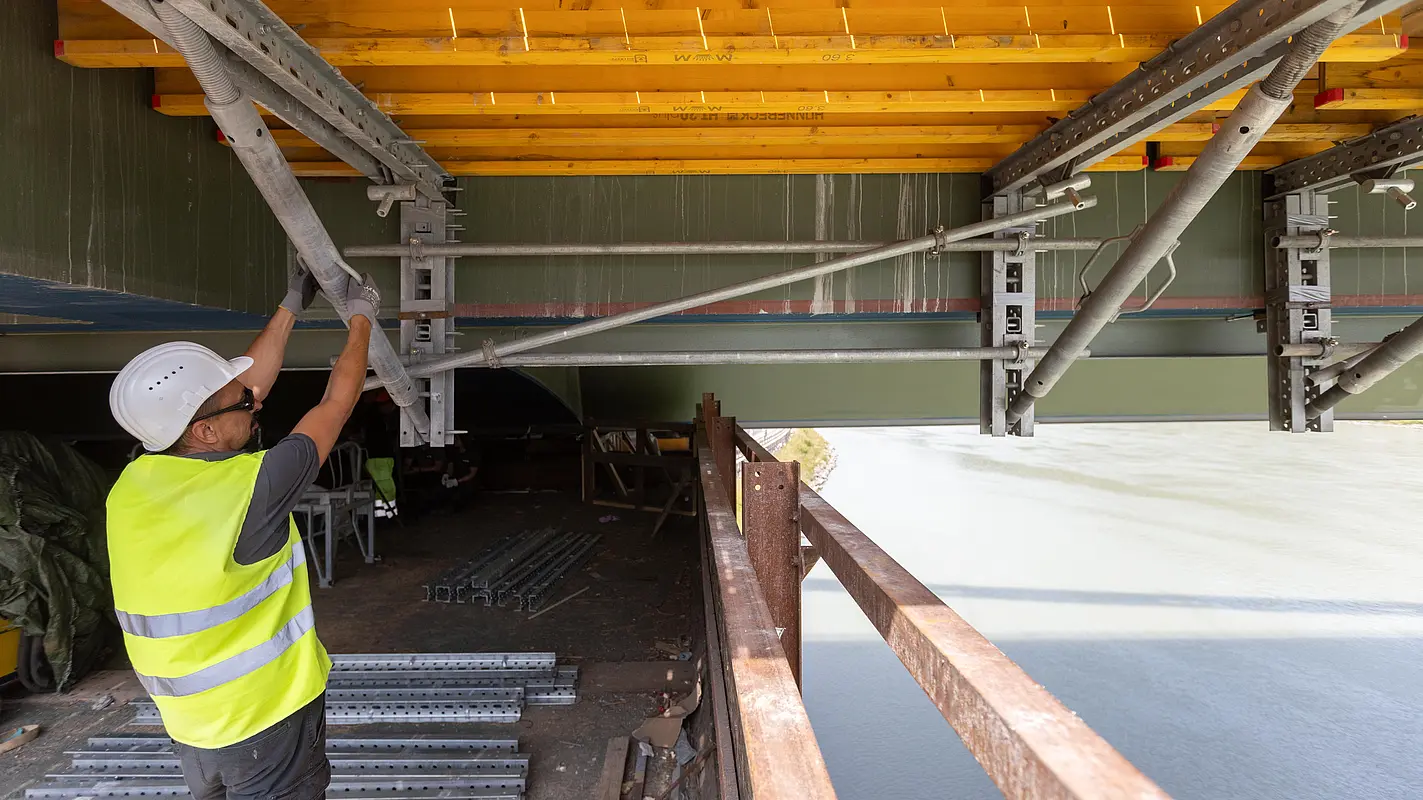

The INFRA-KIT Parapet Bracket is a cantilever formwork system and the proper system to engineer any kind of parapet bracket solutions.

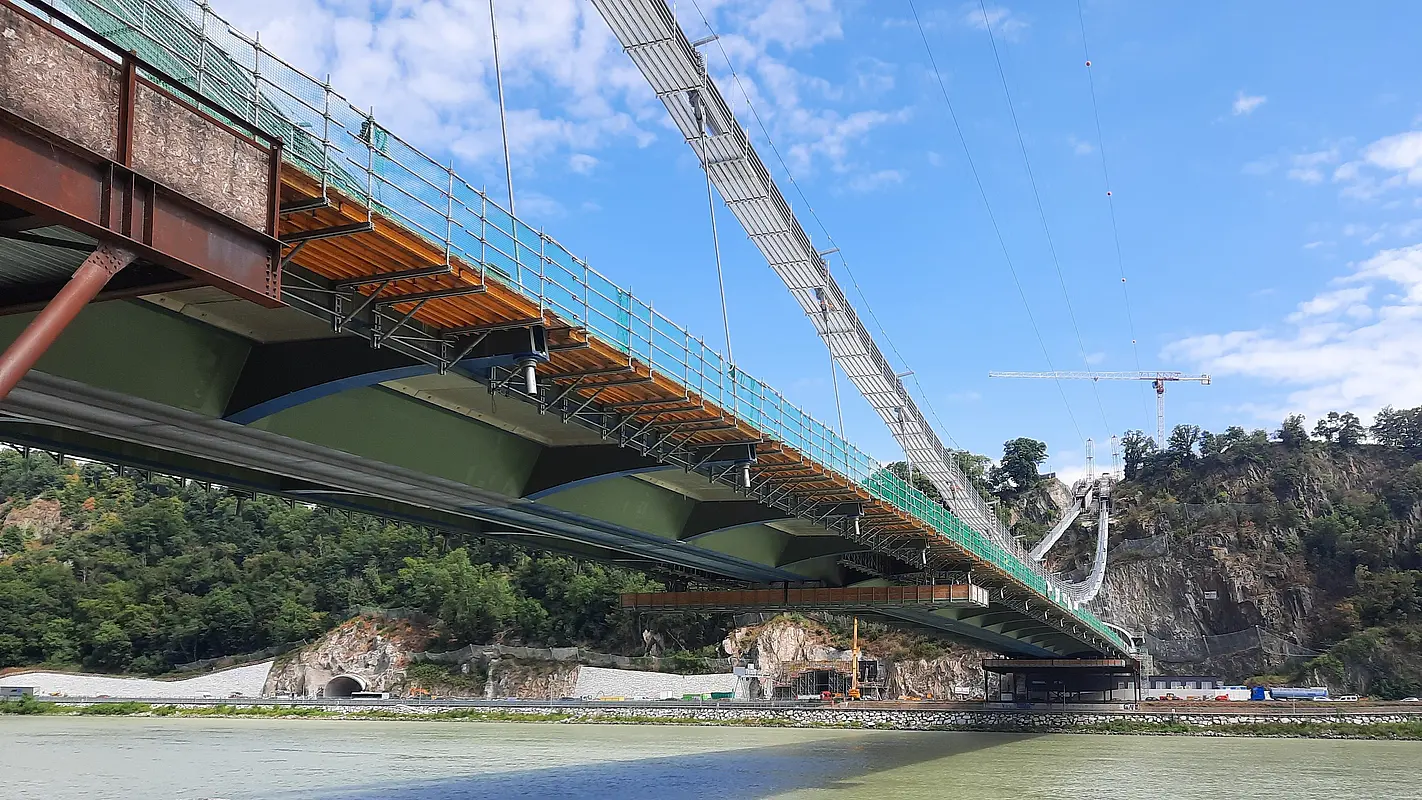

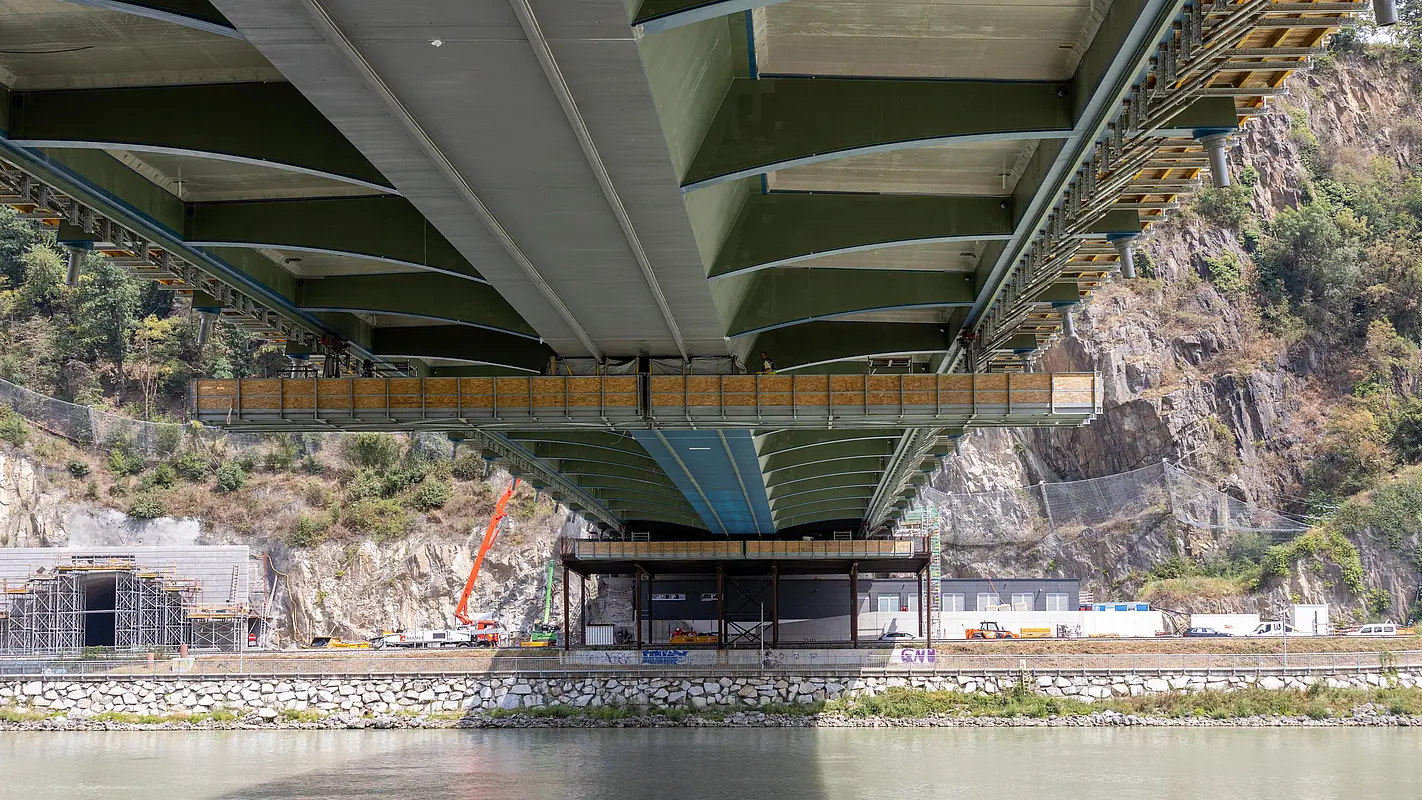

The INFRA-KIT Parapet Bracket system is versatile and utilises less equipment than a traditional underslung arrangement. It can adapt to any kind of geometry to suit the steel girders, precast concrete beams or cast in situ bridge decks.





Videos & photos

2

Product advantages



Work productively

  • Off site assembly and lifting in units possible
  • Possibility to adapt the shape and loads

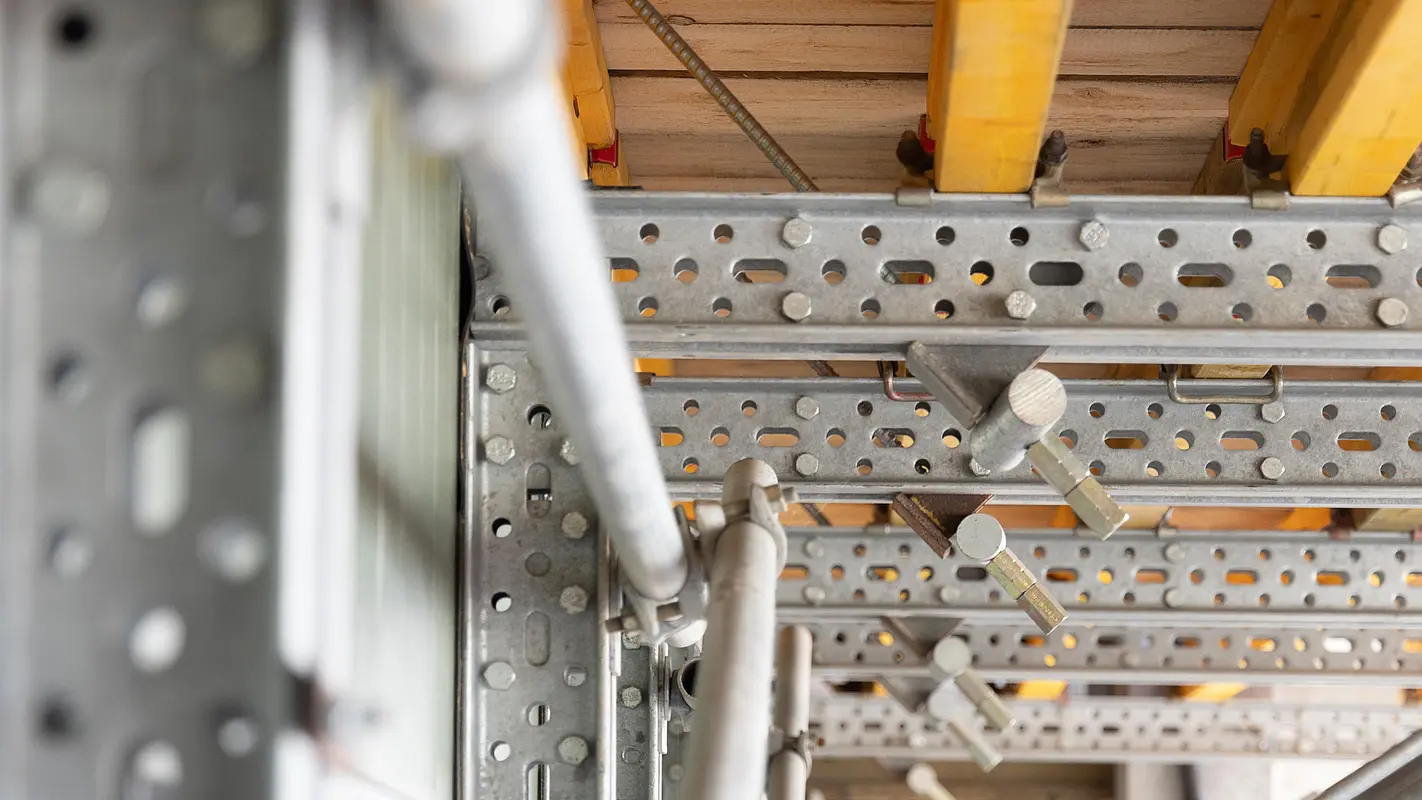

  • Simple connection details; assembly using pin connection

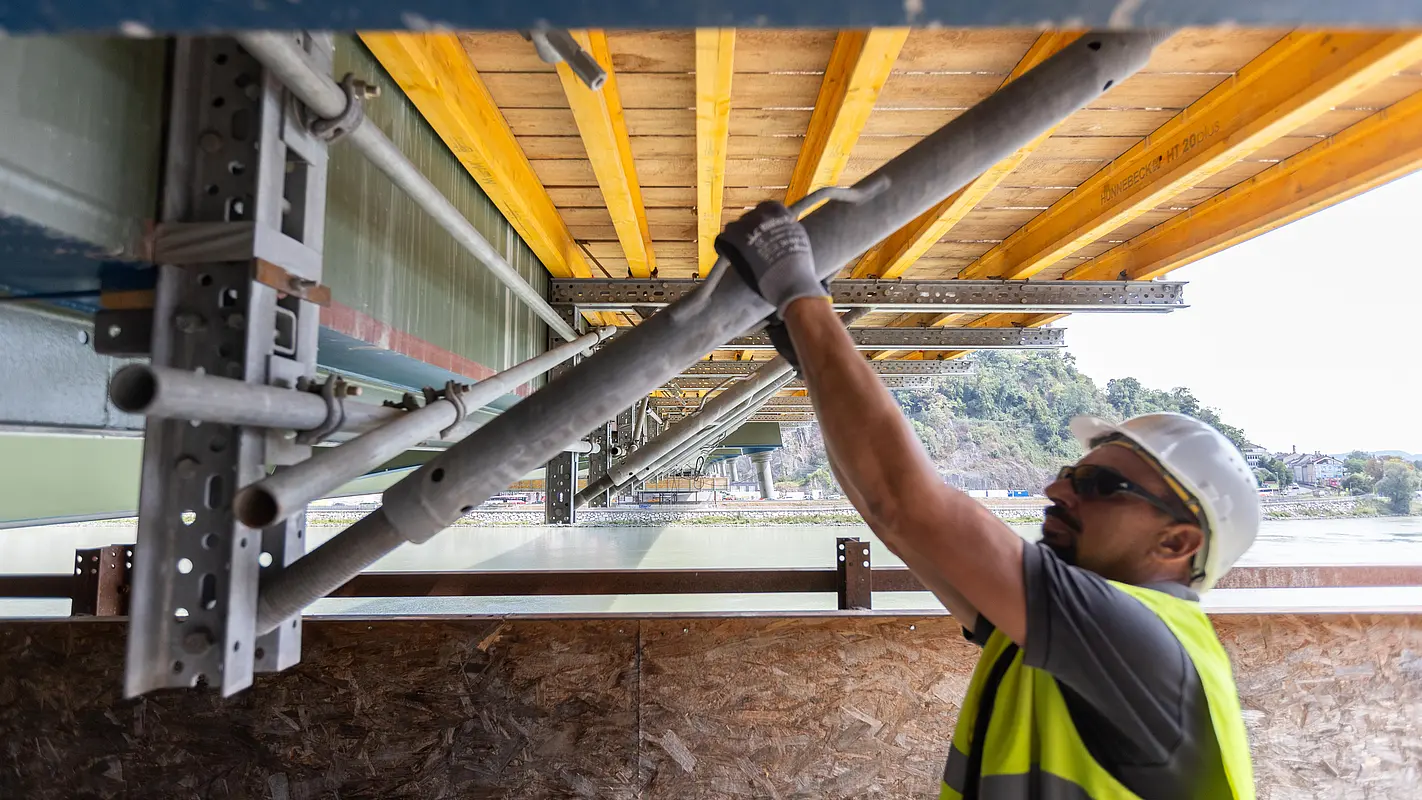

  • Spindles and waler easy to adjust and fit
  • Multiple ways of anchoring:
    • Beam bracket
    • Anchor bracket
    • Custom anchoring
  • Complete galvanized system, including mechanical components


Work safely

  • Equipped with handrail protection by using PROTECTO or MODEX
  • Clean and smooth working area
  • Possibility to strike from top
  • Robust and durable

Technical data

INFRA-KIT L



Waler Lengths

62,5 | 75 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 cm

Waler connectors

Connector to walers or spindles with or without additional spindle adapter

Bolts

Ø 16 and Ø 20, depending on load

Spindle length

Spindles for light and heavy loads available; from 50 cm to 480 cm in different extension lengths

Corrosion protection

Hot-dip galvanised

INFRA-KIT M



Waler lenghts

150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 cm

Waler connectors

Connector to walers or spindles with or without additional spindle adapter

Bolts

Load dependend Ø 20 and Ø 25

Spindle lengths

Spindles for light and heavy loads available; from 50 cm to 480 cm in different extension lengths

Corrosion protection

Hot-dip galvanised
