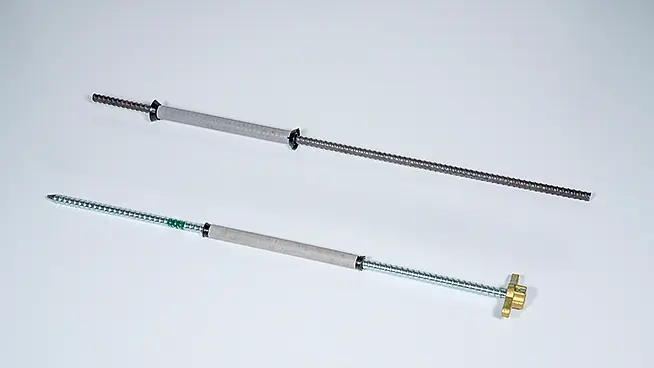

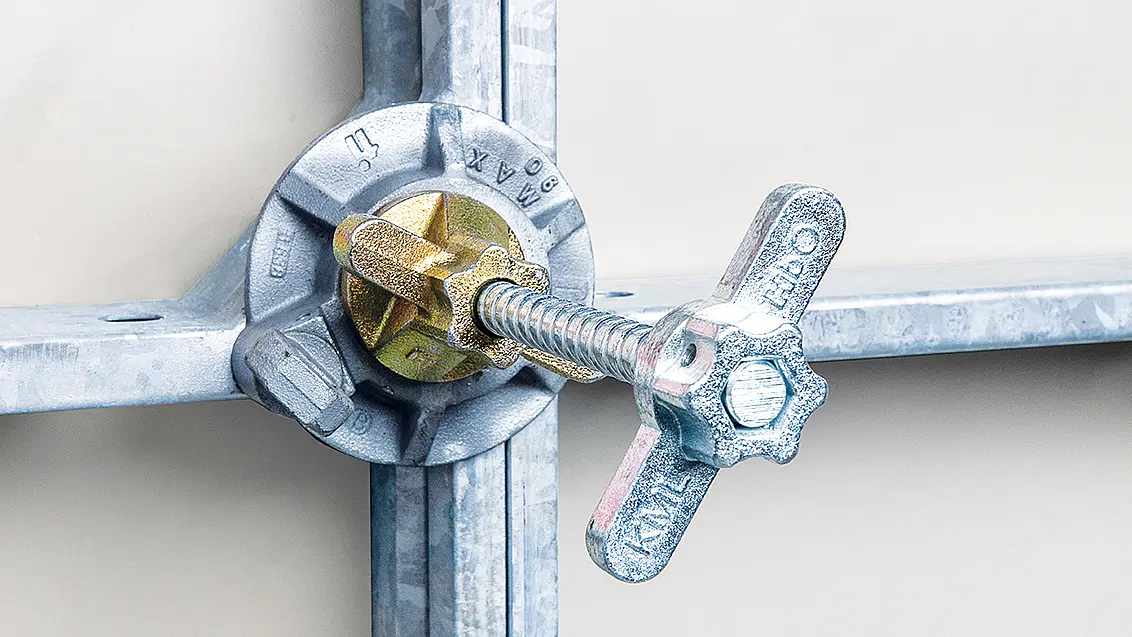

RASTO G2 makes anchoring flexible and easy. Single-sided anchoring is possible, as is the use of traditional DW 15 or She-Bolt anchors.
Product advantages
![Einseitiges Ankern / Optional single-sided tying](/fileadmin/_processed_/3/c/csm_20220901_hunnebeck__einseitiges_ankern-8995_ff7575e890.jpg)
![Klemmhebel / RASTO Clip](/fileadmin/_processed_/a/b/csm_20220901_-hunnebeck__klemmhebel-9163_rte_925f75c3f8.jpg)
![Aussenecken / Outer corners](/fileadmin/_processed_/8/c/csm_20220901_-hunnebeck__aussenecken-9258_ret_bffb076d3a.jpg)
![RASTO ECOPLY / ECOPLY plastic form sheet](/fileadmin/_processed_/7/4/csm_rasto_ecoply_ce4f7fd0af.png)
![Abschalzwinge / Bulkhead clamp](/fileadmin/_processed_/8/4/csm_20220901_-hunnebeck__abschalzwinge-9249_ret_435705b01c.jpg)
Work productively

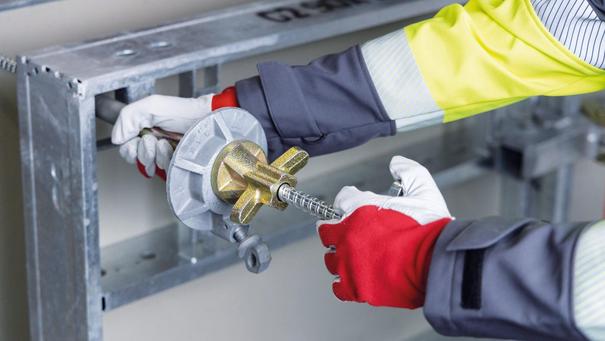

- Optional single-sided tying increases efficiency

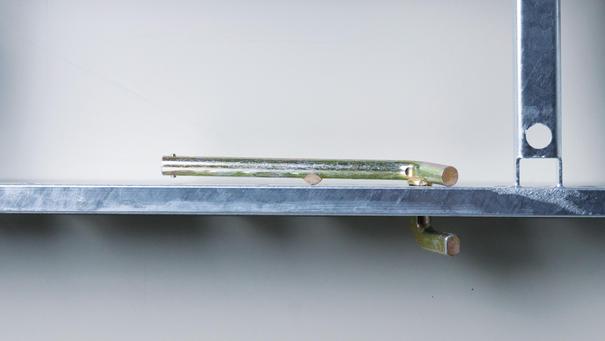

- RASTO Clip: lightweight, quick, no tools required
- One third fewer connectors required than with comparable systems
- XXL panels (6.48 m²) make the system especially economical
- Outer corners made of standard panels - no special panels required
- Outstanding concreting results with ECOPLY plastic form sheet; easy cleaning and minimal wear
- Clever accessories: Bulkhead clamp can be used in place of up to eight components; wall thickness only needs to be set once. Can also be used as a dry tie
![360 Grad Schutz / 360° side protection](/fileadmin/_processed_/d/1/csm_20220901_-hunnebeck__360_grad_schutz-7997_ret_892568309e.jpg)
![Verbindungsmittel / Connector](/fileadmin/_processed_/f/b/csm_20220901_-hunnebeck__verbindungsmittel-9179_ret_e7577f4c30.jpg)
![Material / Galvanised steel frame](/fileadmin/_processed_/0/f/csm_20220901_-hunnebeck__material-9144_ret_1e23863d60.jpg)
Work safely

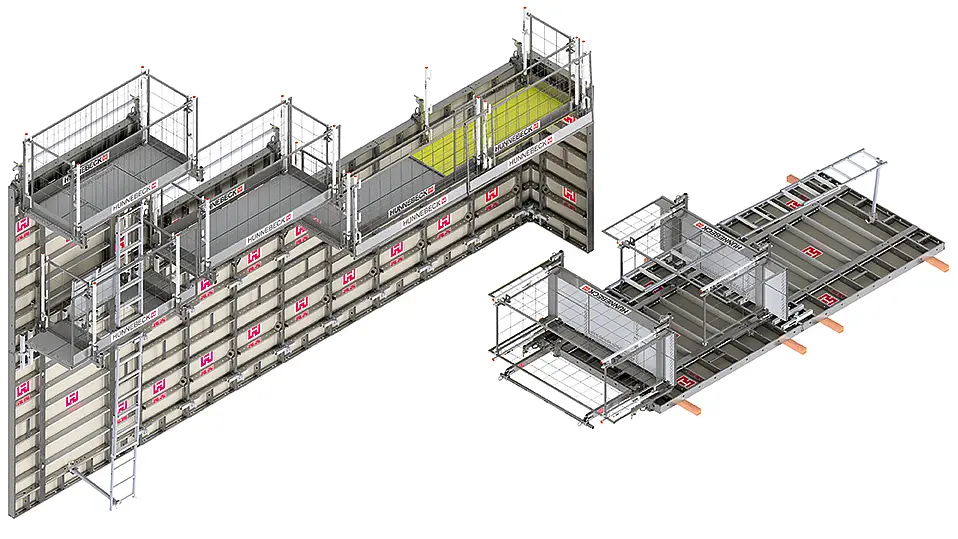

- Platform can be pre-assembled, with 360° side protection and integrated stairs
- Lightweight panels reduce fatigue

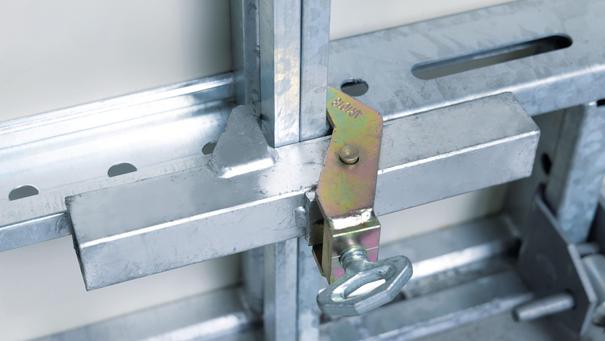

- Connectors stored on the formwork, where they are easily accessible
- Hot-dip galvanised steel frame ensures long serviceable life
- Transport Hook G2: lightweight, powerful, operable from ground level
Application & use
Download the user guide here. Click on the name of a chapter to access it directly.
Overview of user guide
Technical data
Panel widths | 30 | 45 | 60 | 75 | 90 | 240 cm |
Panel heights | 120 | 150 | 270 cm |
Multipurpose panels | 70 x 150 | 70 x 270 | 70 x 300 cm |
Profile thickness | 12 cm steel frame profile |
Form sheet | Multilayer panel (min. 280 g/m² coating) | ECOPLY plastic form sheet |
Max. concrete pressure | 60 kN/m² |
Form sheet thickness | Multilayer panel = 14 mm | ECOPLY plastic form sheet = 15 mm |
Average weight | 40 to 65 kg/m² (including connectors) |
Corrosion protection | Completely hot-dip galvanised steel frame and connectors |
Relevant standards | Complies with EN 1993 | DIN 18202 | 18218 | 18216 |
Standard connection | RASTO® aligning clamp (aligned and flush connection) |
Special connection | RASTO® Adjustable Aligning Clamp | Outer Corner Clamp | RASTO® Clip |
Inner corners | 30/30 cm |
Hinged corners | From 60° to max. 150° angle |
Outer corners | Base panel with Outer Corner clamps |
Forming/stripping times | t = 0.4 – 0.6 hours/m² |
Special features |
|
